AN48800A-NL

Panasonic

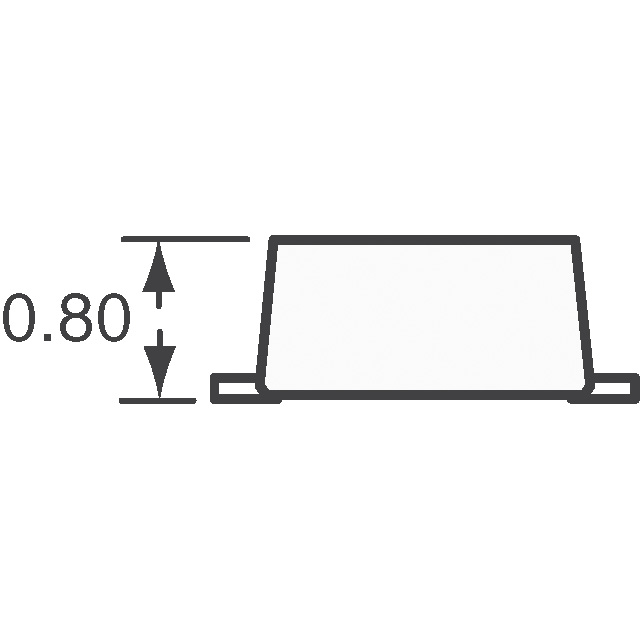

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AN48800A-NL
Manufacturer/Brand:	Panasonic
Product description	MAGNETIC SWITCH UNIPOLAR MINI-3
Datasheets:	AN48800A-NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4686 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4686 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AN48800A-NL

Part Number	AN48800A-NL	Manufacturer	Panasonic
Description	MAGNETIC SWITCH UNIPOLAR MINI-3	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4686 pcs	Data sheet	AN48800A-NL.pdf
Voltage - Supply	2.5 V ~ 3.5 V	Test Condition	25°C
Technology	Hall Effect	Supplier Device Package	MINI-3DRA
Series	-	Sensing Range	6mT Trip, 0.5mT Release
Polarization	South Pole	Packaging	Tape & Reel (TR)
Package / Case	TO-236-3, SC-59, SOT-23-3	Output Type	Open Drain
Other Names	AN48800A-NLTR	Operating Temperature	-20°C ~ 75°C (TA)
Moisture Sensitivity Level (MSL)	2 (1 Year)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Function	Unipolar Switch	Features	-
Detailed Description	Digital Switch Unipolar Switch Open Drain Hall Effect MINI-3DRA	Current - Supply (Max)	15µA
Current - Output (Max)	30mA
