Nexperia
| Part Number | PSMN4R8-100PSEQ | Manufacturer | Nexperia |
|---|---|---|---|
| Description | MOSFET N-CH 100V TO220AB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 44303 pcs | Data sheet | PSMN4R8-100PSEQ.pdf |
| Vgs(th) (Max) @ Id | 4V @ 1mA | Vgs (Max) | ±20V |

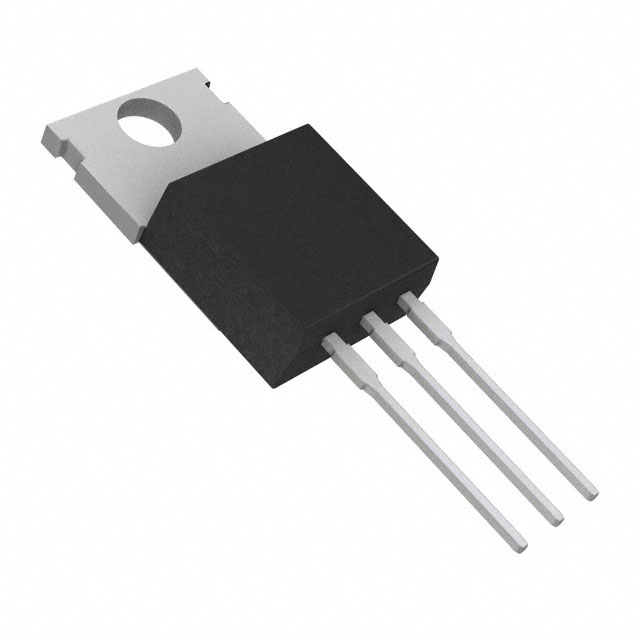

| Technology | MOSFET (Metal Oxide) | Supplier Device Package | TO-220AB |
| Series | - | Rds On (Max) @ Id, Vgs | 5 mOhm @ 25A, 10V |
| Power Dissipation (Max) | 405W (Tc) | Packaging | Tube |
| Package / Case | TO-220-3 | Other Names | 1727-2471 568-12856 568-12856-ND 934068633127 PSMN4R8-100PSEQ-ND |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 14400pF @ 50V | Gate Charge (Qg) (Max) @ Vgs | 278nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 100V |
| Detailed Description | N-Channel 100V 120A (Tj) 405W (Tc) Through Hole TO-220AB | Current - Continuous Drain (Id) @ 25°C | 120A (Tj) |
