SP8M3TB

LAPIS Semiconductor

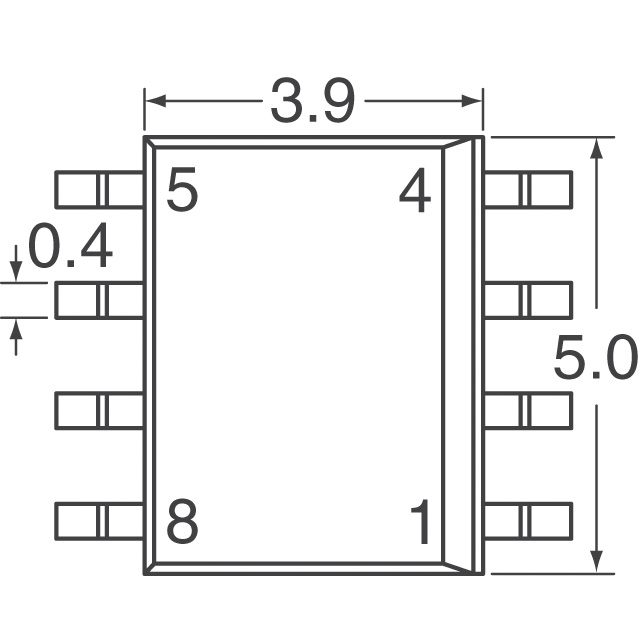

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SP8M3TB
Manufacturer/Brand:	LAPIS Semiconductor
Product description	MOSFET N/P-CH 30V 5A/4.5A 8SOIC
Datasheets:	SP8M3TB.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3978 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3978 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SP8M3TB

Part Number	SP8M3TB	Manufacturer	LAPIS Semiconductor
Description	MOSFET N/P-CH 30V 5A/4.5A 8SOIC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3978 pcs	Data sheet	SP8M3TB.pdf
Vgs(th) (Max) @ Id	2.5V @ 1mA	Supplier Device Package	8-SOP
Series	-	Rds On (Max) @ Id, Vgs	51 mOhm @ 5A, 10V
Power - Max	2W	Packaging	Cut Tape (CT)
Package / Case	8-SOIC (0.154", 3.90mm Width)	Other Names	SP8M3TBCT
Operating Temperature	150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	230pF @ 10V	Gate Charge (Qg) (Max) @ Vgs	3.9nC @ 5V
FET Type	N and P-Channel	FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V	Detailed Description	Mosfet Array N and P-Channel 30V 5A, 4.5A 2W Surface Mount 8-SOP
Current - Continuous Drain (Id) @ 25°C	5A, 4.5A	Base Part Number	*M3
