BS2103F-E2

LAPIS Semiconductor

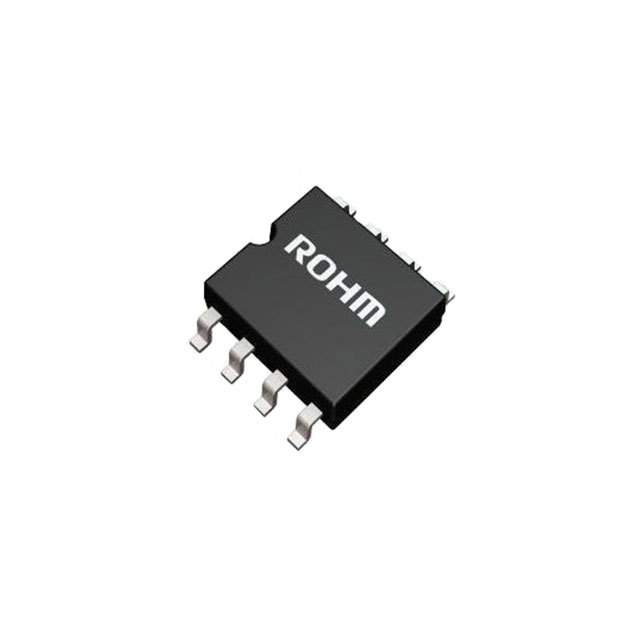

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BS2103F-E2
Manufacturer/Brand:	LAPIS Semiconductor
Product description	IC GATE DRVR HALF-BRIDGE 8SOP
Datasheets:	1.BS2103F-E2.pdf 2.BS2103F-E2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	126678 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 126678 pcs

Reference Price (In US Dollars)

2500 pcs: $0.164

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.164

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BS2103F-E2

Part Number	BS2103F-E2	Manufacturer	LAPIS Semiconductor
Description	IC GATE DRVR HALF-BRIDGE 8SOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	126678 pcs	Data sheet	1.BS2103F-E2.pdf 2.BS2103F-E2.pdf
Voltage - Supply	10 V ~ 18 V	Supplier Device Package	8-SOP
Series	-	Rise / Fall Time (Typ)	200ns, 100ns
Packaging	Tape & Reel (TR)	Package / Case	8-SOIC (0.173", 4.40mm Width)
Other Names	BS2103F-E2TR	Operating Temperature	-40°C ~ 150°C (TJ)
Number of Drivers	2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	17 Weeks
Logic Voltage - VIL, VIH	1V, 2.6V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	Non-Inverting	High Side Voltage - Max (Bootstrap)	600V
Gate Type	IGBT, N-Channel MOSFET	Driven Configuration	Half-Bridge
Detailed Description	Half-Bridge Gate Driver IC Non-Inverting 8-SOP	Current - Peak Output (Source, Sink)	60mA, 130mA
Channel Type	Independent
