JST

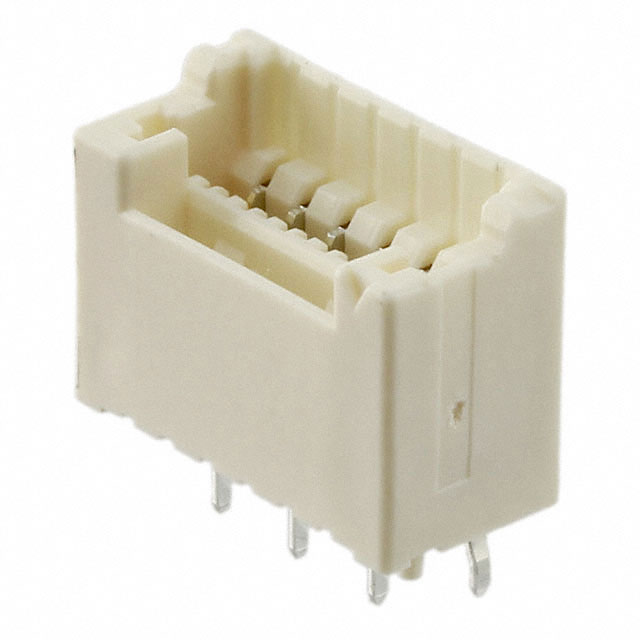

| Part Number | B06B-ZESK-1D(T)(LF)(SN)(N) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER 6POS 1.5MM T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 230463 pcs | Data sheet | B06B-ZESK-1D(T)(LF)(SN)(N).pdf |
| Voltage Rating | 100V | Termination | Kinked Pin, Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | ZE | Row Spacing - Mating | - |
| Pitch - Mating | 0.059" (1.50mm) | Packaging | Tray |
| Overall Contact Length | - | Other Names | 455-2660 B06BZESK1DTLFSNN |
| Operating Temperature | -25°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 10.4mm |
| Manufacturer Standard Lead Time | 24 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Insulation Height | 0.335" (8.51mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Through Hole 6 position 0.059" (1.50mm) | Current Rating | 2A |
| Contact Type | Outer Shroud Contact | Contact Shape | Rectangular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.134" (3.40mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
