ISP814X

Isocom Components

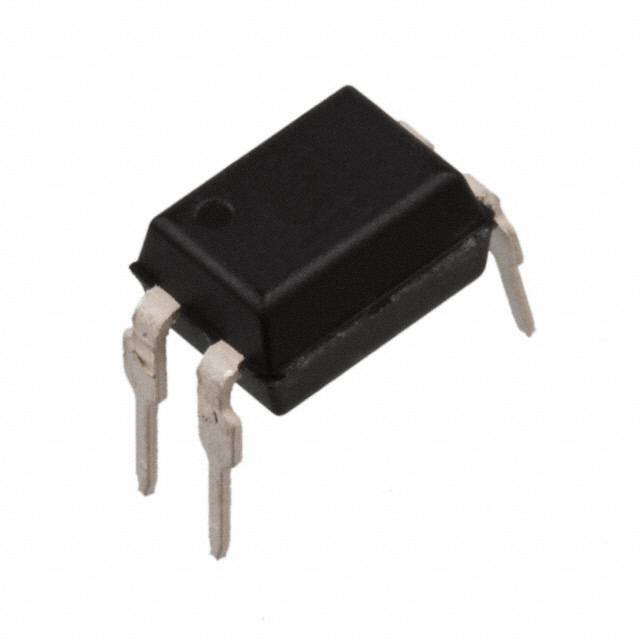

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ISP814X
Manufacturer/Brand:	Isocom Components
Product description	OPTOISO 5.3KV TRANS 4DIP
Datasheets:	ISP814X.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	318520 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 318520 pcs

Reference Price (In US Dollars)

1 pcs: $0.215

10 pcs: $0.168

25 pcs: $0.14

100 pcs: $0.121

250 pcs: $0.108

500 pcs: $0.093

2000 pcs: $0.065

6000 pcs: $0.06

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.215

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ISP814X

Part Number	ISP814X	Manufacturer	Isocom Components
Description	OPTOISO 5.3KV TRANS 4DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	318520 pcs	Data sheet	ISP814X.pdf
Voltage - Output (Max)	35V	Voltage - Isolation	5300Vrms
Voltage - Forward (Vf) (Typ)	1.2V	Vce Saturation (Max)	200mV
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	4-DIP
Series	-	Rise / Fall Time (Typ)	4µs, 3µs
Packaging	Tube	Package / Case	4-DIP (0.300", 7.62mm)
Output Type	Transistor	Other Names	ISP814 ISP814-ND
Operating Temperature	-30°C ~ 100°C	Number of Channels	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	2 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	AC, DC	Detailed Description	Optoisolator Transistor Output 5300Vrms 1 Channel 4-DIP
Current Transfer Ratio (Min)	20% @ 1mA	Current Transfer Ratio (Max)	300% @ 1mA
Current - Output / Channel	50mA	Current - DC Forward (If) (Max)	50mA
