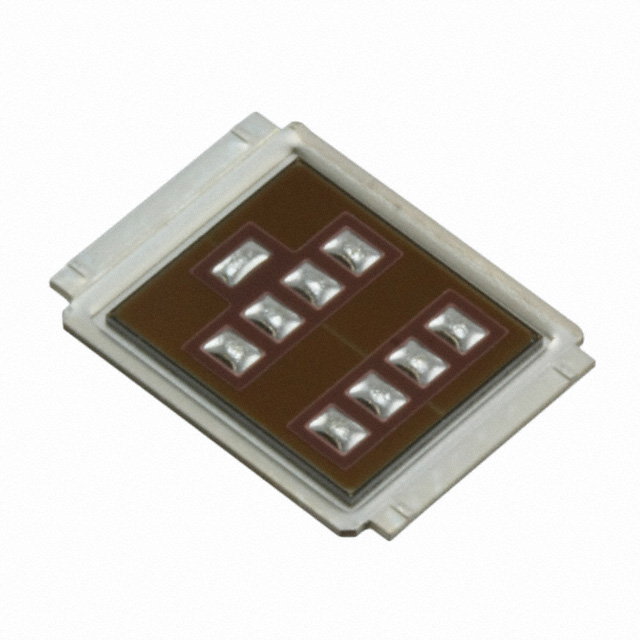

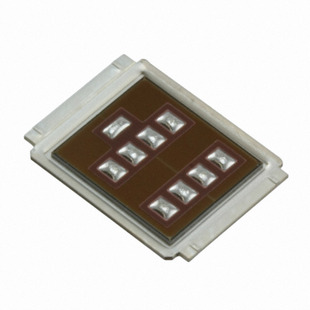

International Rectifier (Infineon Technologies)
| Part Number | IRF7769L2TRPBF | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET N-CH 100V DIRECTFET L8 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31638 pcs | Data sheet | IRF7769L2TRPBF.pdf |
| Vgs(th) (Max) @ Id | 4V @ 250µA | Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | DIRECTFET L8 |
| Series | HEXFET® | Rds On (Max) @ Id, Vgs | 3.5 mOhm @ 74A, 10V |
| Power Dissipation (Max) | 3.3W (Ta), 125W (Tc) | Packaging | Tape & Reel (TR) |
| Package / Case | DirectFET™ Isometric L8 | Other Names | IRF7769L2TRPBF-ND IRF7769L2TRPBFTR SP001577490 |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 11560pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 300nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 100V |
| Detailed Description | N-Channel 100V 375A (Tc) 3.3W (Ta), 125W (Tc) Surface Mount DIRECTFET L8 | Current - Continuous Drain (Id) @ 25°C | 375A (Tc) |
