EG-2001CA 156.2500M-PCHL3

Epson

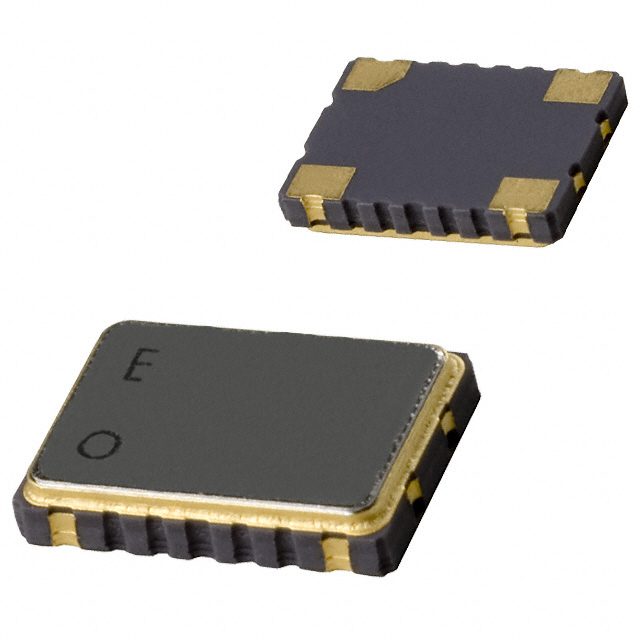

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EG-2001CA 156.2500M-PCHL3
Manufacturer/Brand:	Epson
Product description	OSCILLATOR SO 156.25MHZ CMOS SMD
Datasheets:	1.EG-2001CA 156.2500M-PCHL3.pdf 2.EG-2001CA 156.2500M-PCHL3.pdf 3.EG-2001CA 156.2500M-PCHL3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23492 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 23492 pcs

Reference Price (In US Dollars)

250 pcs: $1.657

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.657

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EG-2001CA 156.2500M-PCHL3

Part Number	EG-2001CA 156.2500M-PCHL3	Manufacturer	Epson
Description	OSCILLATOR SO 156.25MHZ CMOS SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23492 pcs	Data sheet	1.EG-2001CA 156.2500M-PCHL3.pdf 2.EG-2001CA 156.2500M-PCHL3.pdf 3.EG-2001CA 156.2500M-PCHL3.pdf
Voltage - Supply	3.3V	Type	SO (SAW)
Size / Dimension	0.276" L x 0.197" W (7.00mm x 5.00mm)	Series	EG-2001CA
Ratings	-	Packaging	Tape & Reel (TR)
Package / Case	4-SMD, No Lead	Output	CMOS
Other Names	EG-2001CA 156.2500M-PCHL3-ND EG-2001CA156.2500M-PCHL3	Operating Temperature	0°C ~ 70°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	22 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.055" (1.40mm)	Function	Enable/Disable
Frequency Stability	±100ppm	Frequency	156.25MHz
Detailed Description	156.25MHz SO (SAW) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead	Current - Supply (Max)	50mA
Current - Supply (Disable) (Max)	10µA	Base Resonator	Crystal
