CUI, Inc.

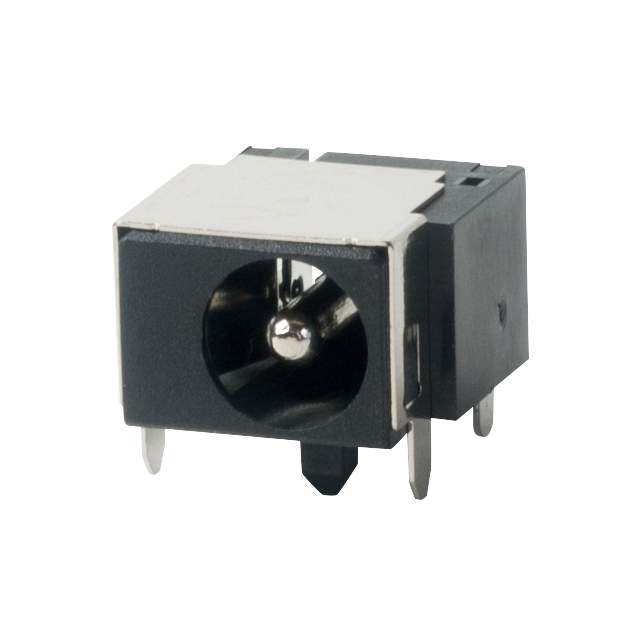

| Part Number | PJ-076B | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN PWR JACK 2.5X5.5MM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 90616 pcs | Data sheet | PJ-076B.pdf |
| Voltage - Rated | 24VDC | Thread Size | - |
| Termination | Solder | Shielding | Shielded |
| Series | - | Packaging | Bulk |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 3 Conductors, 4 Contacts |
| Mounting Type | Through Hole, Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Length/Depth | 0.323" (8.20mm) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Single Switch, Normally Closed | Insulation Color | - |
| Ingress Protection | - | Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
| Includes | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Gender | Male | Features | Board Guide |
| Detailed Description | Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle | Current Rating | 2.5A |
| Contact Material - Plating | Tin | Contact Material | Brass; Copper Alloy |
| Connector Type | Jack | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.098" (2.50mm ID), 0.236" (6.00mm OD) |
