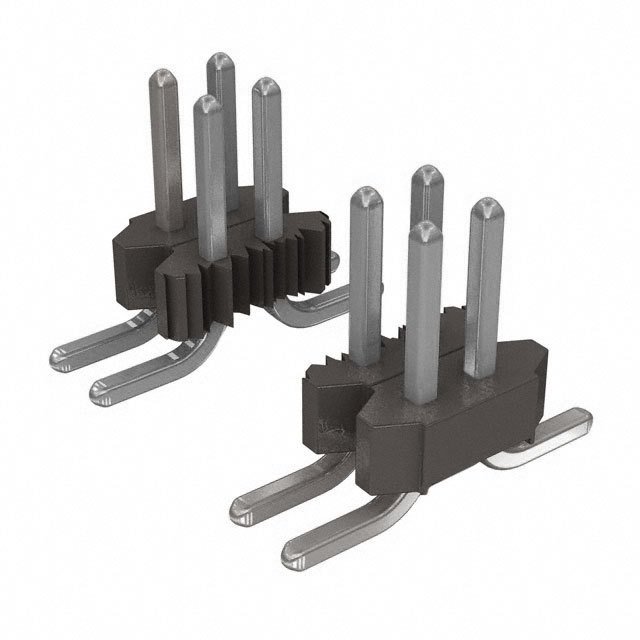

Part Number | 0015911781 | Manufacturer | Affinity Medical Technologies - a Molex company |
---|---|---|---|
Description | CONN HEADER 78POS TIN SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 24274 pcs | Data sheet | 1.0015911781.pdf2.0015911781.pdf3.0015911781.pdf |
Voltage Rating | - | Termination | Solder |
Style | Board to Board or Cable | Shrouding | Unshrouded |
Series | C-Grid 71308 | Row Spacing - Mating | 0.100" (2.54mm) |
Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
Overall Contact Length | - | Other Names | 0015-91-1781 001591-1781 15-91-1781 15911781 |
Operating Temperature | - | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 78 |
Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled | Insulation Height | 0.050" (1.27mm) |
Insulation Color | Black | Ingress Protection | - |
Features | Board Guide | Fastening Type | Push-Pull |
Detailed Description | Connector Header Surface Mount 78 position 0.100" (2.54mm) | Current Rating | - |
Contact Type | Male Pin | Contact Shape | Square |
Contact Material | Copper Alloy | Contact Length - Post | - |
Contact Length - Mating | 0.240" (6.10mm) | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
Contact Finish Thickness - Mating | 150.0µin (3.81µm) | Contact Finish - Post | Tin |
Contact Finish - Mating | Tin | Connector Type | Header, Breakaway |
Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
