Z8F0813PH005SC

Zilog

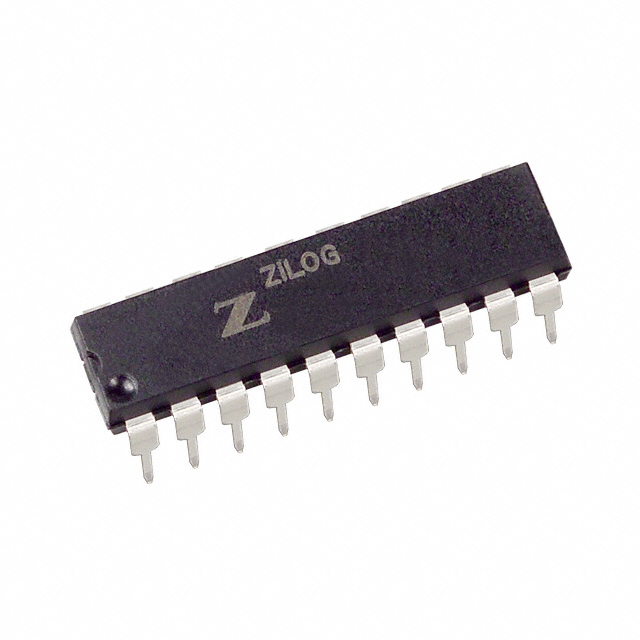

Image may be representation. See specifications for product details.

Product Overview

Part Number:	Z8F0813PH005SC
Manufacturer/Brand:	Zilog
Product description	IC MCU 8BIT 8KB FLASH 20DIP
Datasheets:	Z8F0813PH005SC.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	4815 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4815 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of Z8F0813PH005SC

Part Number	Z8F0813PH005SC	Manufacturer	Zilog
Description	IC MCU 8BIT 8KB FLASH 20DIP	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	4815 pcs	Data sheet	Z8F0813PH005SC.pdf
Voltage - Supply (Vcc/Vdd)	2.7 V ~ 3.6 V	Speed	5MHz
Series	Encore!® XP®	RAM Size	1K x 8
Program Memory Type	FLASH	Program Memory Size	8KB (8K x 8)
Peripherals	Brown-out Detect/Reset, LED, POR, PWM, WDT	Packaging	Tube
Package / Case	20-DIP (0.300", 7.62mm)	Other Names	269-3718
Oscillator Type	Internal	Operating Temperature	0°C ~ 70°C (TA)
Number of I/O	16	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	EEPROM Size	-
Detailed Description	eZ8 Encore!® XP® Microcontroller IC 8-Bit 5MHz 8KB (8K x 8) FLASH	Data Converters	-
Core Size	8-Bit	Core Processor	eZ8
Connectivity	IrDA, UART/USART	Base Part Number	Z8F0813
