JCM2024D15

XP PowerXP Power

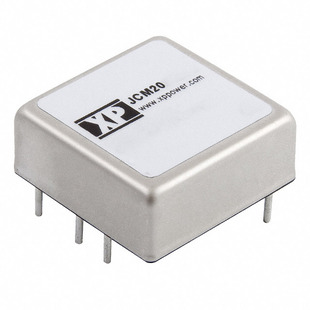

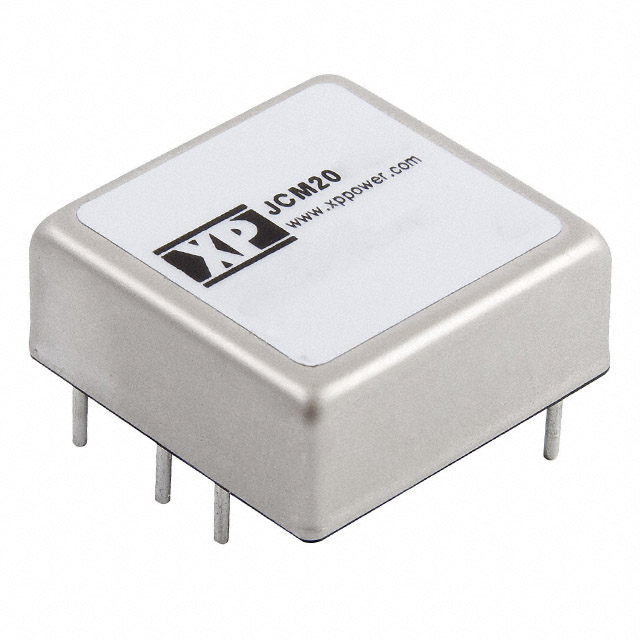

JCM2024D15 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: JCM2024D15
Manufacturer/Brand: XP Power
Product description DC DC CONVERTER +/-15V 20W
Datasheets: JCM2024D15.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 2270 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 2270 pcs
Reference Price (In US Dollars)
10 pcs
$15.523
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$15.523

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of JCM2024D15

Part Number JCM2024D15 Manufacturer XP Power
Description DC DC CONVERTER +/-15V 20W Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 2270 pcs Data sheet JCM2024D15.pdf
Voltage - Output 3 - Voltage - Output 2 -15V
Voltage - Output 1 15V Voltage - Isolation 1.6kV
Voltage - Input (Min) 18V Voltage - Input (Max) 36V
Type Isolated Module Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Series JCM Power (Watts) 20W
Packaging Tube Package / Case 6-DIP Module
Operating Temperature -40°C ~ 105°C Number of Outputs 2
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 9 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Features Remote On/Off, OCP, OVP, SCP Efficiency 89%
Detailed Description Isolated Module DC DC Converter 2 Output 15V -15V 667mA, 667mA 18V - 36V Input Current - Output (Max) 667mA, 667mA
Control Features Enable, Active High Applications ITE (Commercial)
