RFDIP2520080TM0T62

Walsin TechnologyWalsin Technology

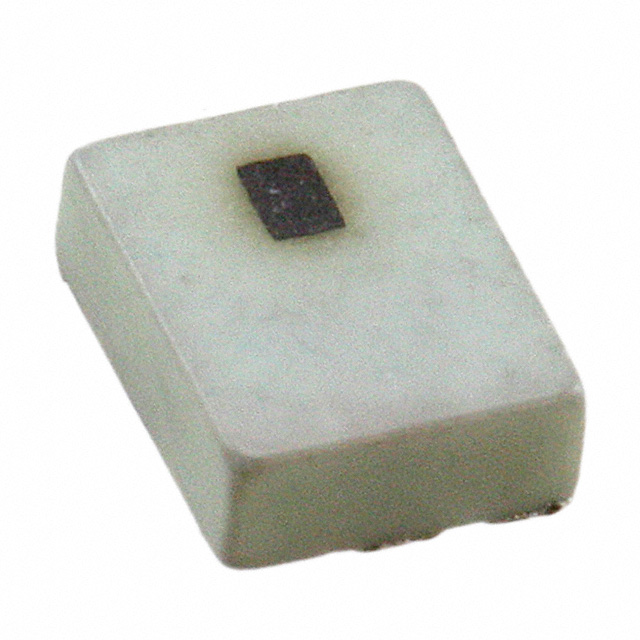

RFDIP2520080TM0T62 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: RFDIP2520080TM0T62
Manufacturer/Brand: Walsin Technology
Product description RF DIPLEXER 1.575/2.45GHZ 1008
Datasheets: RFDIP2520080TM0T62.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 283318 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 283318 pcs
Reference Price (In US Dollars)
2000 pcs
$0.069
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.069

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of RFDIP2520080TM0T62

Part Number RFDIP2520080TM0T62 Manufacturer Walsin Technology
Description RF DIPLEXER 1.575/2.45GHZ 1008 Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 283318 pcs Data sheet RFDIP2520080TM0T62.pdf
Series RFDIP Return Loss (Low Band / High Band) 10dB / 10dB
Packaging Tape & Reel (TR) Package / Case 1008 (2520 Metric), 9 PC Pad
Other Names 1292-1034-2 Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Low Band Attenuation (min / max dB) -
Lead Free Status / RoHS Status Lead free / RoHS Compliant High Band Attenuation (min / max dB) 30.00dB / -
Frequency Bands (Low / High) 1.565GHz ~ 1.585GHz / 2.4GHz ~ 2.5GHz Detailed Description RF Diplexor 1.565GHz ~ 1.585GHz / 2.4GHz ~ 2.5GHz 1008 (2520 Metric), 9 PC Pad
