VOL3120T

Vishay / Semiconductor - Opto Division

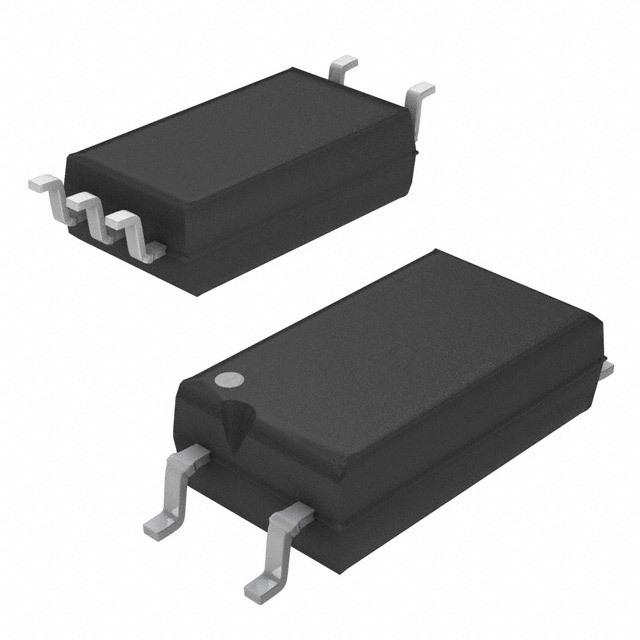

Image may be representation. See specifications for product details.

Product Overview

Part Number:	VOL3120T
Manufacturer/Brand:	Vishay / Semiconductor - Opto Division
Product description	OPTOISO 5.3KV 1CH GATE DVR 5LSOP
Datasheets:	VOL3120T.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	81803 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 81803 pcs

Reference Price (In US Dollars)

2000 pcs: $0.306

6000 pcs: $0.294

10000 pcs: $0.288

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.306

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of VOL3120T

Part Number	VOL3120T	Manufacturer	Vishay / Semiconductor - Opto Division
Description	OPTOISO 5.3KV 1CH GATE DVR 5LSOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	81803 pcs	Data sheet	VOL3120T.pdf
Voltage - Supply	15 V ~ 32 V	Voltage - Isolation	5300Vrms
Voltage - Forward (Vf) (Typ)	1.36V	Technology	Optical Coupling
Supplier Device Package	5-LSOP	Series	-
Rise / Fall Time (Typ)	100ns, 100ns	Pulse Width Distortion (Max)	300ns
Propagation Delay tpLH / tpHL (Max)	500ns, 500ns	Packaging	Tape & Reel (TR)
Package / Case	6-SOIC (0.295", 7.50mm Width), 5 Leads	Other Names	VOL3120TTR
Operating Temperature	-40°C ~ 100°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	41 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	2.5A Gate Driver Optical Coupling 5300Vrms 1 Channel 5-LSOP	Current - Peak Output	2.5A
Current - Output High, Low	2.5A, 2.5A	Current - DC Forward (If) (Max)	25mA
Common Mode Transient Immunity (Min)	48kV/µs	Approvals	CQC, cUR, UR
