SFH692AT

Vishay / Semiconductor - Opto Division

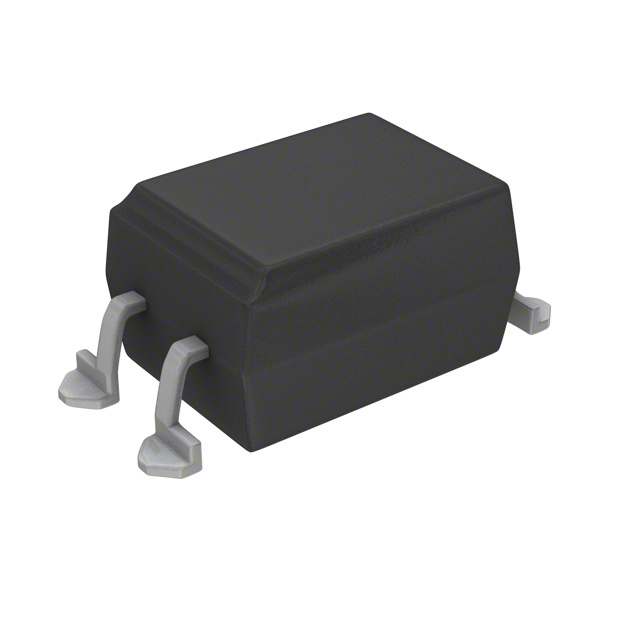

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SFH692AT
Manufacturer/Brand:	Vishay / Semiconductor - Opto Division
Product description	OPTOISO 3.75KV DARLINGTON 4SOP
Datasheets:	SFH692AT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5925 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5925 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SFH692AT

Part Number	SFH692AT	Manufacturer	Vishay / Semiconductor - Opto Division
Description	OPTOISO 3.75KV DARLINGTON 4SOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5925 pcs	Data sheet	SFH692AT.pdf
Voltage - Output (Max)	300V	Voltage - Isolation	3750Vrms
Voltage - Forward (Vf) (Typ)	1.2V	Vce Saturation (Max)	1V
Turn On / Turn Off Time (Typ)	1.5µs, 53.5µs	Supplier Device Package	4-SOP (2.54mm)
Series	-	Rise / Fall Time (Typ)	1µs, 20.5µs
Packaging	Tape & Reel (TR)	Package / Case	4-SMD, Gull Wing
Output Type	Darlington	Operating Temperature	-55°C ~ 100°C
Number of Channels	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Darlington Output 3750Vrms 1 Channel 4-SOP (2.54mm)
Current Transfer Ratio (Min)	1000% @ 1mA	Current Transfer Ratio (Max)	-
Current - Output / Channel	50mA	Current - DC Forward (If) (Max)	50mA
