SFH6756T

Vishay / Semiconductor - Opto Division

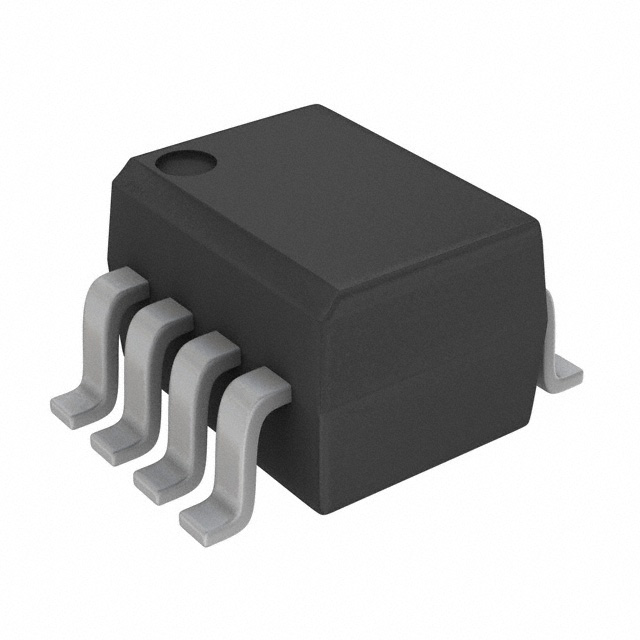

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SFH6756T
Manufacturer/Brand:	Vishay / Semiconductor - Opto Division
Product description	OPTOISO 4KV 2CH OPEN DRAIN 8SOIC
Datasheets:	SFH6756T.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	62048 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 62048 pcs

Reference Price (In US Dollars)

2000 pcs: $0.519

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.519

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SFH6756T

Part Number	SFH6756T	Manufacturer	Vishay / Semiconductor - Opto Division
Description	OPTOISO 4KV 2CH OPEN DRAIN 8SOIC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	62048 pcs	Data sheet	SFH6756T.pdf
Voltage - Supply	4.5 V ~ 5.5 V	Voltage - Isolation	4000Vrms
Voltage - Forward (Vf) (Typ)	1.4V	Supplier Device Package	8-SOIC
Series	-	Rise / Fall Time (Typ)	23ns, 7ns
Propagation Delay tpLH / tpHL (Max)	100ns, 100ns	Packaging	Tape & Reel (TR)
Package / Case	8-SOIC (0.154", 3.90mm Width)	Output Type	Open Drain
Operating Temperature	-40°C ~ 100°C	Number of Channels	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inputs - Side 1/Side 2	2/0	Input Type	DC
Detailed Description	Logic Output Optoisolator 10MBd Open Drain 4000Vrms 2 Channel 5kV/µs CMTI 8-SOIC	Data Rate	10MBd
Current - Output / Channel	50mA	Current - DC Forward (If) (Max)	20mA
Common Mode Transient Immunity (Min)	5kV/µs
