TY-302P

Triad Magnetics

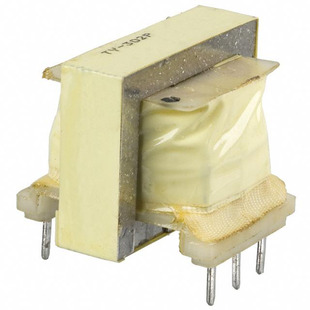

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TY-302P
Manufacturer/Brand:	Triad Magnetics
Product description	TRANSF 600 OHM 0MA DC TEL HYBRID
Datasheets:	TY-302P.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	20846 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 20846 pcs

Reference Price (In US Dollars)

1 pcs: $2.473

10 pcs: $1.881

25 pcs: $1.832

50 pcs: $1.683

100 pcs: $1.584

250 pcs: $1.535

500 pcs: $1.485

1000 pcs: $1.436

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.473

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TY-302P

Part Number	TY-302P	Manufacturer	Triad Magnetics
Description	TRANSF 600 OHM 0MA DC TEL HYBRID	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20846 pcs	Data sheet	TY-302P.pdf
Weight	-	Voltage - Isolation	1500VAC
Turns Ratio - Primary:Secondary	1:1.47	Transformer Type	Data/Voice Coupling
Termination Style	PC Pin	Size / Dimension	1.040" L x 0.960" W (26.42mm x 24.38mm)
Series	TY	Return Loss	32dB Typ
Power Level	-45dB ~ 7dB	Packaging	Bulk
Other Names	10616 237-1125 TY302P	Operating Temperature	-
Mounting Type	Through Hole	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Loss	0.65dB Typ
Impedance - Secondary (Ohms)	600/600	Impedance - Primary (Ohms)	600
Height - Seated (Max)	0.870" (22.10mm)	Frequency Response	-
Frequency Range	300Hz ~ 3.5kHz	DC Resistance (DCR) - Secondary	-
DC Resistance (DCR) - Primary	-	Approvals	-
