HomeProductsTransformersAudio TransformersTY-250P

TY-250P

Triad MagneticsTriad Magnetics

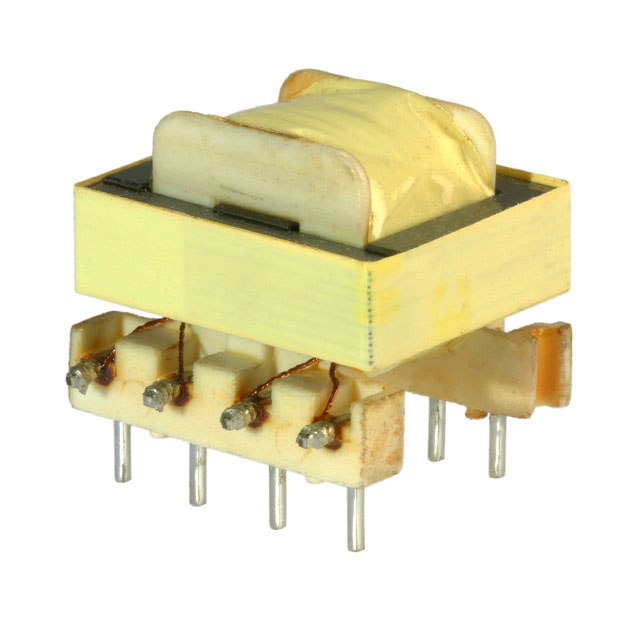

TY-250P Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: TY-250P
Manufacturer/Brand: Triad Magnetics
Product description PC MOUNT AUDIO TRANSFORMER
Datasheets: TY-250P.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 19759 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 19759 pcs
Reference Price (In US Dollars)
1 pcs
$1.961
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$1.961

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of TY-250P

Part Number TY-250P Manufacturer Triad Magnetics
Description PC MOUNT AUDIO TRANSFORMER Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 19759 pcs Data sheet TY-250P.pdf
Voltage - Isolation 1500VAC Turns Ratio - Primary:Secondary 1:1, 2:1
Transformer Type Impedance Matching Termination Style PC Pin
Size / Dimension 0.800" L x 0.770" W (20.32mm x 19.56mm) Series TY
Return Loss - Power Level -
Operating Temperature -40°C ~ 105°C Mounting Type Through Hole
Manufacturer Standard Lead Time 29 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insertion Loss 2.8dB Max @ 1kHz Impedance - Secondary (Ohms) 1kCT
Impedance - Primary (Ohms) 1kCT Height - Seated (Max) 0.700" (17.78mm)
Frequency Response ±1dB Frequency Range 20Hz ~ 20kHz
DC Resistance (DCR) - Secondary 172 Ohm DC Resistance (DCR) - Primary 172 Ohm
Approvals -
