FP56-200

Triad Magnetics

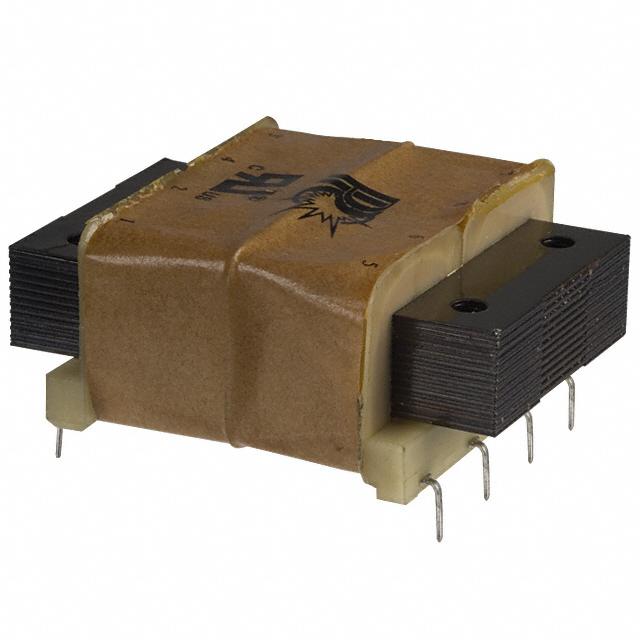

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FP56-200
Manufacturer/Brand:	Triad Magnetics
Product description	XFRMR LAMINATED 12VA THRU HOLE
Datasheets:	FP56-200.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	11140 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 11140 pcs

Reference Price (In US Dollars)

1 pcs: $5.188

10 pcs: $3.831

25 pcs: $3.537

50 pcs: $3.419

100 pcs: $3.324

250 pcs: $3.277

500 pcs: $3.242

1000 pcs: $3.183

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$5.188

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FP56-200

Part Number	FP56-200	Manufacturer	Triad Magnetics
Description	XFRMR LAMINATED 12VA THRU HOLE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11140 pcs	Data sheet	FP56-200.pdf
Weight	0.688 lb (312.07g)	Voltage - Secondary (Full Load)	Parallel 28V, Series 56V
Voltage - Primary	115V, 230V	Voltage - Isolation	2000Vrms
Type	Laminated Core	Termination Style	PC Pin
Size / Dimension	63.50mm L x 50.80mm W	Series	FP
Secondary Winding(s)	Dual	Primary Winding(s)	Dual
Power - Max	12 VA	Other Names	10422 237-1007 FP56200
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	Not Applicable
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	26.97mm	Current - Output (Max)	Parallel 400mA, Series 200mA
Center Tap	No
