FD7-120

Triad MagneticsTriad Magnetics

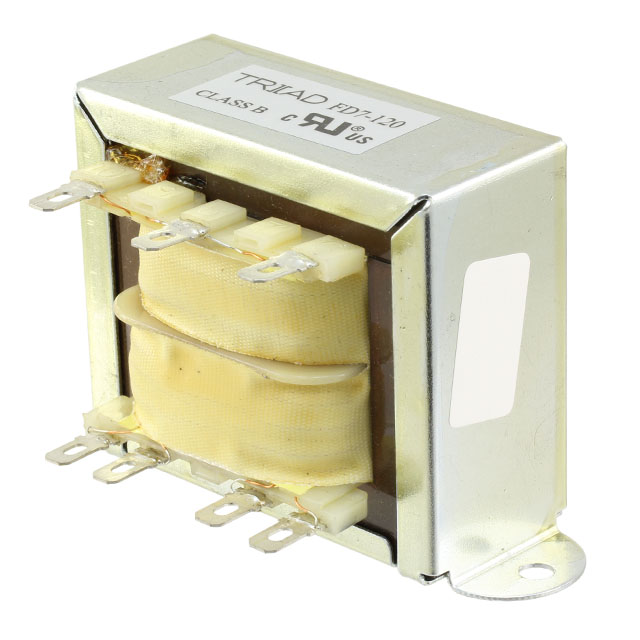

FD7-120 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: FD7-120
Manufacturer/Brand: Triad Magnetics
Product description XFRMR LAMINATED THRU HOLE
Datasheets: FD7-120.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 7399 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 7399 pcs
Reference Price (In US Dollars)
1 pcs
$6.79
10 pcs
$5.172
25 pcs
$4.768
50 pcs
$4.607
100 pcs
$4.526
250 pcs
$4.364
500 pcs
$4.202
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$6.79

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of FD7-120

Part Number FD7-120 Manufacturer Triad Magnetics
Description XFRMR LAMINATED THRU HOLE Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 7399 pcs Data sheet FD7-120.pdf
Weight 1.7 lbs (771.1g) Voltage - Secondary (Full Load) 120V
Voltage - Primary 115V, 230V Voltage - Isolation 2500VAC
Type Laminated Core Termination Style Solder, Quick Connect - 0.187" (4.7mm)
Size / Dimension 93.65mm L x 46.02mm W Series Quick Pack
Secondary Winding(s) Single Primary Winding(s) Dual
Power - Max 56 VA Other Names 237-1756
Mounting Type Chassis Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 16 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Height - Seated (Max) 57.15mm Current - Output (Max) 500mA
Center Tap Yes
