F20-600

Triad Magnetics

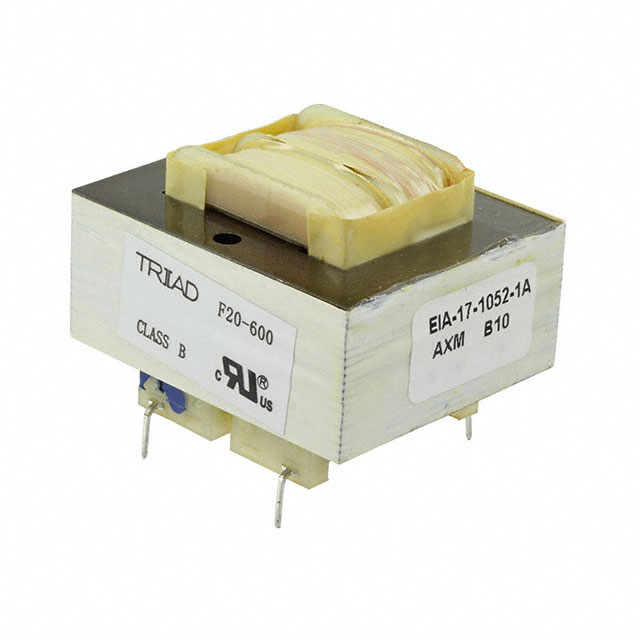

Image may be representation. See specifications for product details.

Product Overview

Part Number:	F20-600
Manufacturer/Brand:	Triad Magnetics
Product description	XFRMR LAMINATED THRU HOLE
Datasheets:	F20-600.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12528 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12528 pcs

Reference Price (In US Dollars)

10 pcs: $2.778

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.778

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of F20-600

Part Number	F20-600	Manufacturer	Triad Magnetics
Description	XFRMR LAMINATED THRU HOLE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12528 pcs	Data sheet	F20-600.pdf
Weight	0.7 lb (317.51g)	Voltage - Secondary (Full Load)	Parallel 10V, Series 20V
Voltage - Primary	115V	Voltage - Isolation	2500Vrms
Type	Laminated Core	Termination Style	PC Pin
Size / Dimension	47.63mm L x 39.67mm W	Series	Split Pack™, Class 2/3, F
Secondary Winding(s)	Dual	Primary Winding(s)	Single
Power - Max	12 VA	Other Names	237-1814
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	36.50mm	Current - Output (Max)	Parallel 1.2A, Series 600mA
Center Tap	No
