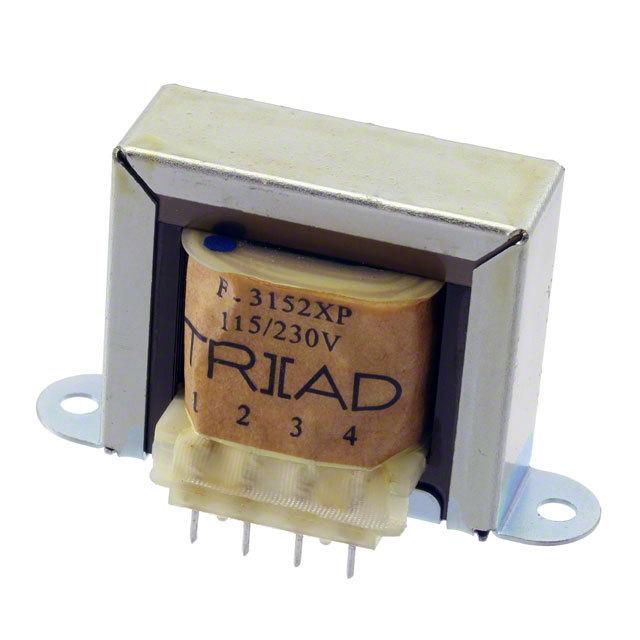

F-3152XP

Triad Magnetics

Image may be representation. See specifications for product details.

Product Overview

Part Number:	F-3152XP
Manufacturer/Brand:	Triad Magnetics
Product description	POWER TRANSFORMER PCB MOUNT
Datasheets:	F-3152XP.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14858 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 14858 pcs

Reference Price (In US Dollars)

1 pcs: $3.828

10 pcs: $2.933

25 pcs: $2.485

50 pcs: $2.444

100 pcs: $2.322

250 pcs: $2.297

500 pcs: $2.265

1000 pcs: $2.24

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.828

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of F-3152XP

Part Number	F-3152XP	Manufacturer	Triad Magnetics
Description	POWER TRANSFORMER PCB MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14858 pcs	Data sheet	F-3152XP.pdf
Weight	0.69 lb (312.98g)	Voltage - Secondary (Full Load)	Parallel 7.5V, Series 15V
Voltage - Primary	115V, 230V	Voltage - Isolation	1500Vrms
Type	Laminated Core	Termination Style	PC Pin
Size / Dimension	71.42mm L x 36.50mm W	Series	Single Primary
Secondary Winding(s)	Dual	Primary Winding(s)	Dual
Power - Max	7.5 VA	Other Names	237-1969
Mounting Type	User Defined	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	41.28mm	Current - Output (Max)	Parallel 1A, Series 500mA
Center Tap	No
