F-153XP

Triad MagneticsTriad Magnetics

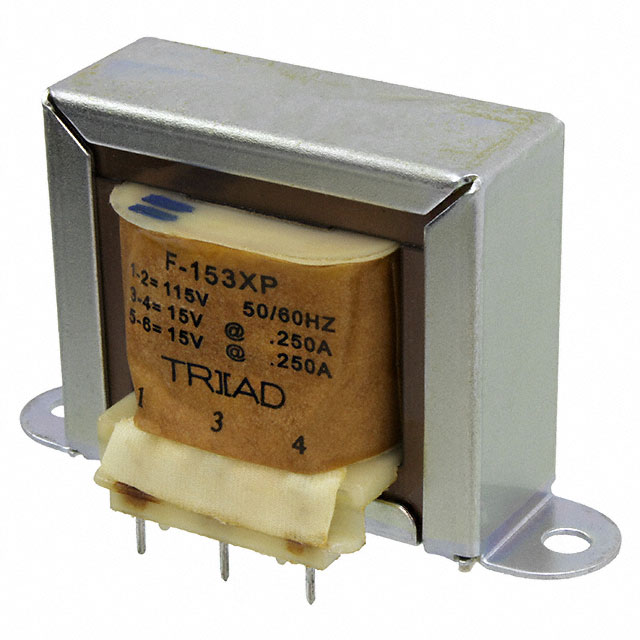

F-153XP Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: F-153XP
Manufacturer/Brand: Triad Magnetics
Product description POWER TRANSFORMER PCB MOUNT
Datasheets: F-153XP.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 17699 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 17699 pcs
Reference Price (In US Dollars)
1 pcs
$3.572
10 pcs
$2.736
25 pcs
$2.318
50 pcs
$2.28
100 pcs
$2.166
250 pcs
$2.143
500 pcs
$2.113
1000 pcs
$2.09
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$3.572

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of F-153XP

Part Number F-153XP Manufacturer Triad Magnetics
Description POWER TRANSFORMER PCB MOUNT Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 17699 pcs Data sheet F-153XP.pdf
Weight 0.657 lb (298.01g) Voltage - Secondary (Full Load) Parallel 15V, Series 30V
Voltage - Primary 115V Voltage - Isolation 1500Vrms
Type Laminated Core Termination Style PC Pin
Size / Dimension 71.42mm L x 37.29mm W Series Single Primary
Secondary Winding(s) Dual Primary Winding(s) Single
Power - Max 7.5 VA Other Names 237-1919
Mounting Type User Defined Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 16 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Height - Seated (Max) 41.28mm Current - Output (Max) Parallel 500mA, Series 250mA
Center Tap No
