CSE187L-P

Triad Magnetics

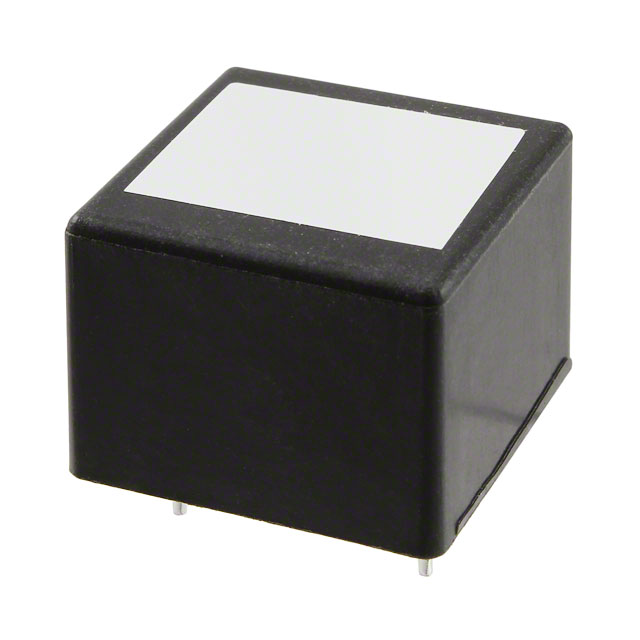

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CSE187L-P
Manufacturer/Brand:	Triad Magnetics
Product description	CURR SENSE XFMR 1:500 30A T/H
Datasheets:	CSE187L-P.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	37548 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 37548 pcs

Reference Price (In US Dollars)

1 pcs: $1.835

10 pcs: $1.486

25 pcs: $1.202

50 pcs: $1.126

100 pcs: $1.075

250 pcs: $1.044

500 pcs: $1.012

1000 pcs: $0.98

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.835

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CSE187L-P

Part Number	CSE187L-P	Manufacturer	Triad Magnetics
Description	CURR SENSE XFMR 1:500 30A T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	37548 pcs	Data sheet	CSE187L-P.pdf
Weight	-	Type	Invasive
Turns Ratio - Primary:Secondary	1:500	Termination Style	PC Pin
Size / Dimension	0.875" L x 0.875" W (22.23mm x 22.23mm)	Series	CSE
Ratings	-	Packaging	Bulk
Other Names	237-1628 CSE187L-P-ND Q2465469 Q3453587	Mounting Type	Through Hole
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.720" (18.29mm)	Frequency Range	50Hz ~ 400Hz
Energy Time (E.T.)	-	Detailed Description	30A 1:500 Current Sense Transformer 50Hz ~ 400Hz 3 mOhm Primary, 21 Ohm Secondary Through Hole
DC Resistance (DCR)	3 mOhm Primary, 21 Ohm Secondary	Current Ratio	-
Current Rating	30A
