CSE187L-P-B

Triad Magnetics

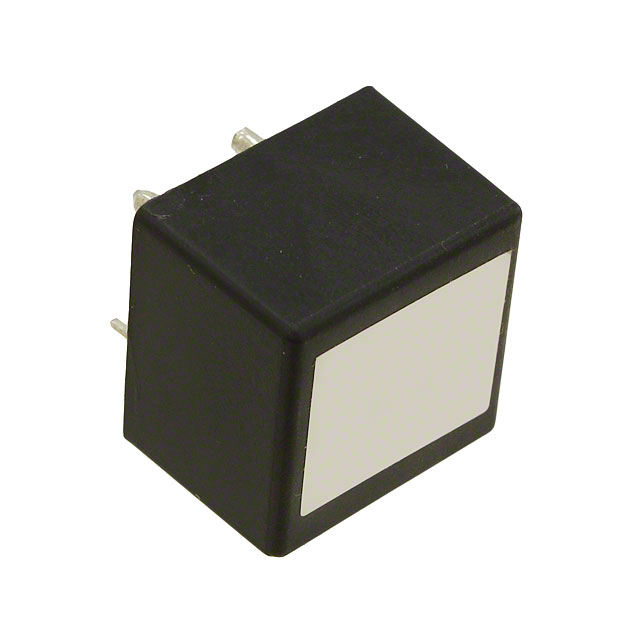

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CSE187L-P-B
Manufacturer/Brand:	Triad Magnetics
Product description	CURR SENSE XFMR 1:500 30A T/H
Datasheets:	CSE187L-P-B.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	38875 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 38875 pcs

Reference Price (In US Dollars)

324 pcs: $0.994

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.994

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CSE187L-P-B

Part Number	CSE187L-P-B	Manufacturer	Triad Magnetics
Description	CURR SENSE XFMR 1:500 30A T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	38875 pcs	Data sheet	CSE187L-P-B.pdf
Weight	-	Type	Invasive
Turns Ratio - Primary:Secondary	1:500	Termination Style	PC Pin
Size / Dimension	0.875" L x 0.875" W (22.23mm x 22.23mm)	Series	CSE
Ratings	-	Packaging	Bulk
Other Names	Q5729688	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.720" (18.29mm)
Frequency Range	50Hz ~ 400Hz	Energy Time (E.T.)	-
Detailed Description	30A 1:500 Current Sense Transformer 50Hz ~ 400Hz 3 mOhm Primary, 21 Ohm Secondary Through Hole	DC Resistance (DCR)	3 mOhm Primary, 21 Ohm Secondary
Current Ratio	-	Current Rating	30A
