AX1005-102K

Triad Magnetics

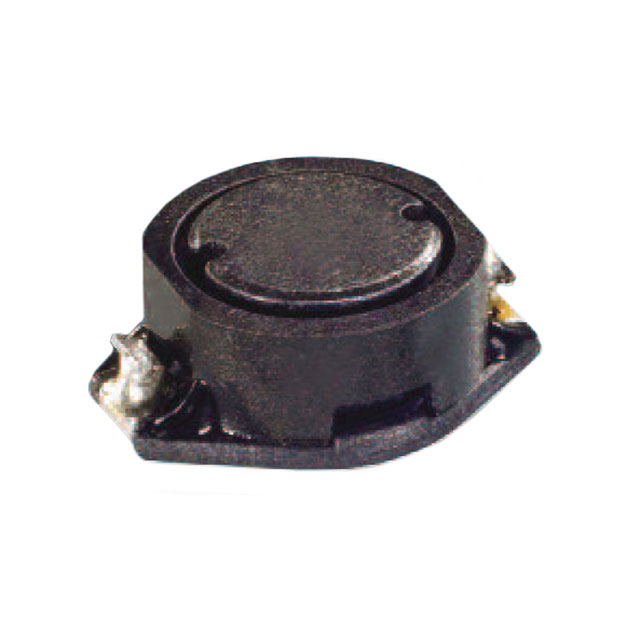

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AX1005-102K
Manufacturer/Brand:	Triad Magnetics
Product description	FIXED IND 1MH 220MA 3.2 OHM SMD
Datasheets:	AX1005-102K.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	97525 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 97525 pcs

Reference Price (In US Dollars)

600 pcs: $0.227

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.227

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AX1005-102K

Part Number	AX1005-102K	Manufacturer	Triad Magnetics
Description	FIXED IND 1MH 220MA 3.2 OHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	97525 pcs	Data sheet	AX1005-102K.pdf
Type	Wirewound	Tolerance	±10%
Supplier Device Package	-	Size / Dimension	0.500" L x 0.394" W (12.70mm x 10.00mm)
Shielding	Shielded	Series	AX1005
Ratings	-	Q @ Freq	70 @ 100kHz
Packaging	Bulk	Package / Case	Nonstandard
Operating Temperature	-40°C ~ 85°C	Mounting Type	Surface Mount
Material - Core	Ferrite	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	100kHz
Inductance	1mH	Height - Seated (Max)	0.193" (4.90mm)
Frequency - Self Resonant	2MHz	Detailed Description	1mH Shielded Wirewound Inductor 220mA 3.2 Ohm Max Nonstandard
DC Resistance (DCR)	3.2 Ohm Max	Current Rating	220mA
Current - Saturation	-
