TPH3208LSG

Transphorm

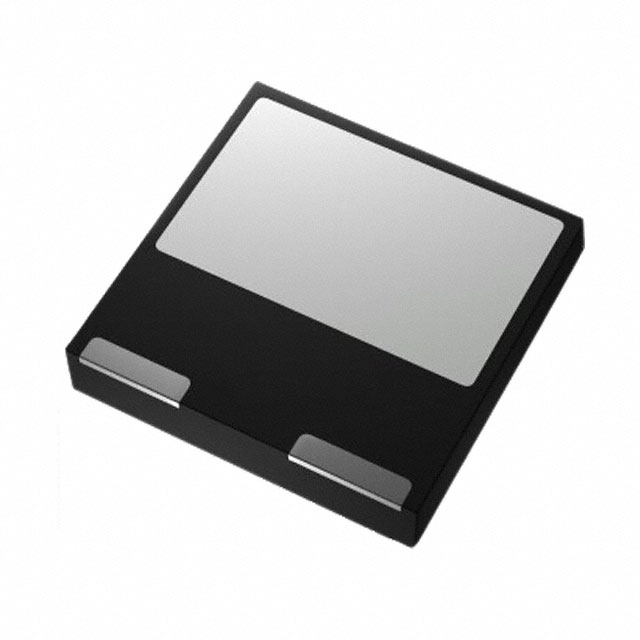

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TPH3208LSG
Manufacturer/Brand:	Transphorm
Product description	MOSFET N-CH 650V 20A 3PQFN
Datasheets:	TPH3208LSG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12087 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12087 pcs

Reference Price (In US Dollars)

1 pcs: $5.04

10 pcs: $4.535

60 pcs: $4.132

120 pcs: $3.729

300 pcs: $3.426

540 pcs: $3.124

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$5.04

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TPH3208LSG

Part Number	TPH3208LSG	Manufacturer	Transphorm
Description	MOSFET N-CH 650V 20A 3PQFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12087 pcs	Data sheet	TPH3208LSG.pdf
Vgs(th) (Max) @ Id	2.6V @ 300µA	Vgs (Max)	±18V
Technology	GaNFET (Gallium Nitride)	Supplier Device Package	3-PQFN (8x8)
Series	-	Rds On (Max) @ Id, Vgs	130 mOhm @ 14A, 8V
Power Dissipation (Max)	96W (Tc)	Packaging	Tube
Package / Case	3-PowerDFN	Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	760pF @ 400V
Gate Charge (Qg) (Max) @ Vgs	42nC @ 8V	FET Type	N-Channel
FET Feature	-	Drive Voltage (Max Rds On, Min Rds On)	8V
Drain to Source Voltage (Vdss)	650V	Detailed Description	N-Channel 650V 20A (Tc) 96W (Tc) Surface Mount 3-PQFN (8x8)
Current - Continuous Drain (Id) @ 25°C	20A (Tc)
