TK22E10N1,S1X

Toshiba Semiconductor and Storage

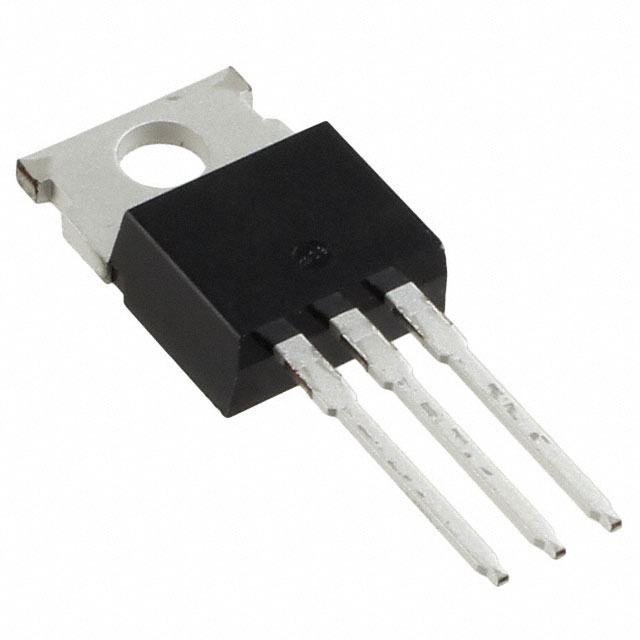

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TK22E10N1,S1X
Manufacturer/Brand:	Toshiba Semiconductor and Storage
Product description	MOSFET N CH 100V 52A TO220
Datasheets:	TK22E10N1,S1X.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	92781 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 92781 pcs

Reference Price (In US Dollars)

1 pcs: $0.57

50 pcs: $0.456

100 pcs: $0.399

500 pcs: $0.309

1000 pcs: $0.244

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.57

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TK22E10N1,S1X

Part Number	TK22E10N1,S1X	Manufacturer	Toshiba Semiconductor and Storage
Description	MOSFET N CH 100V 52A TO220	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	92781 pcs	Data sheet	TK22E10N1,S1X.pdf
Vgs(th) (Max) @ Id	4V @ 300µA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	TO-220
Series	U-MOSVIII-H	Rds On (Max) @ Id, Vgs	13.8 mOhm @ 11A, 10V
Power Dissipation (Max)	72W (Tc)	Packaging	Tube
Package / Case	TO-220-3	Other Names	TK22E10N1,S1X(S TK22E10N1S1X
Operating Temperature	150°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	1800pF @ 50V	Gate Charge (Qg) (Max) @ Vgs	28nC @ 10V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	10V	Drain to Source Voltage (Vdss)	100V
Detailed Description	N-Channel 100V 52A (Tc) 72W (Tc) Through Hole TO-220	Current - Continuous Drain (Id) @ 25°C	52A (Tc)
