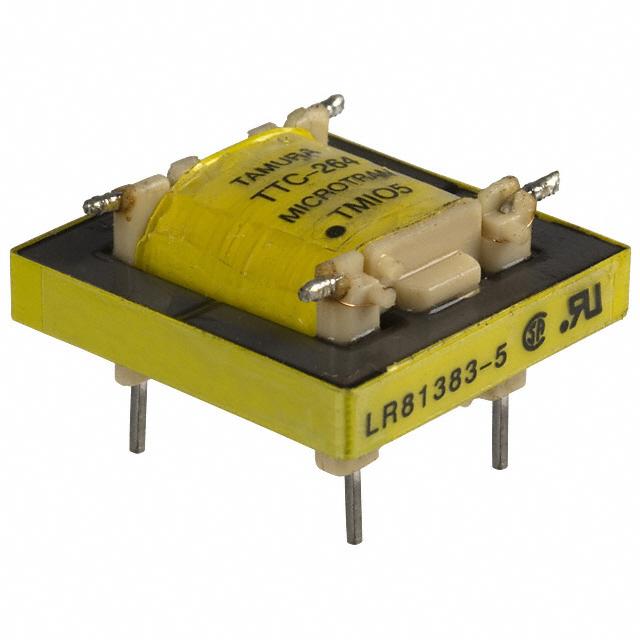

Part Number | TTC-264 | Manufacturer | Tamura |
---|---|---|---|
Description | TRANSF TELE 600/470 OHM 100MADC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 27909 pcs | Data sheet | TTC-264.pdf |
Weight | - | Voltage - Isolation | 1500VRMS @ 1 Minute |
Turns Ratio - Primary:Secondary | 1:1 | Transformer Type | Data/Voice Coupling |
Termination Style | PC Pin | Size / Dimension | 0.945" L x 0.906" W (24.00mm x 23.00mm) |
Series | TTC | Return Loss | - |
Power Level | -20dB ~ 4dB | Packaging | Bulk |
Other Names | MT4123 TM105 TM105(BOX) TM105(BULK) TTC264 |
Operating Temperature | - |
Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Manufacturer Standard Lead Time | 26 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insertion Loss | 2.5dB Max @ 1kHz | Impedance - Secondary (Ohms) | 470 |
Impedance - Primary (Ohms) | 600 | Height - Seated (Max) | 0.472" (12.00mm) |
Frequency Response | ±1dB ~ ±4dB | Frequency Range | 300Hz ~ 3.5kHz |
DC Resistance (DCR) - Secondary | 120 Ohm | DC Resistance (DCR) - Primary | 108 Ohm |
Approvals | CSA-C22.2 No. 66-M1988, UL1459 |
