Tamura

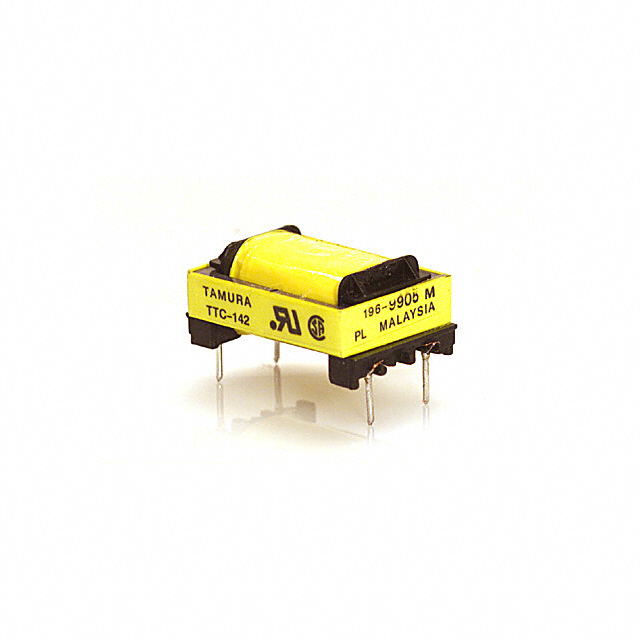

| Part Number | TTC-142 | Manufacturer | Tamura |
|---|---|---|---|
| Description | TRANSF TELE COUP 600 OHM 90MADC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19626 pcs | Data sheet | TTC-142.pdf |
| Weight | - | Voltage - Isolation | 1500VRMS @ 1 Minute |
| Turns Ratio - Primary:Secondary | 1:1.04 | Transformer Type | Data/Voice Coupling |
| Termination Style | PC Pin | Size / Dimension | 0.799" L x 1.201" W (20.30mm x 30.50mm) |
| Series | TTC | Return Loss | 14dB Min @ 1.8kHz |
| Power Level | -45dB ~ 10dB | Packaging | Bulk |
| Other Names | MT4118 T9311 T9311(BOX) T9311(BULK) |
Operating Temperature | - |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 26 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 1.9dB Max @ 1.8kHz | Impedance - Secondary (Ohms) | 600 |
| Impedance - Primary (Ohms) | 600 | Height - Seated (Max) | 0.500" (12.70mm) |
| Frequency Response | -2.5dB ~ 0.3dB | Frequency Range | 300Hz ~ 3.5kHz |
| DC Resistance (DCR) - Secondary | 100 Ohm | DC Resistance (DCR) - Primary | 75 Ohm |
| Approvals | CSA-C22.2 No. 66-M1988, UL1459 |
