DBLS156GHC1G

TSC (Taiwan Semiconductor)

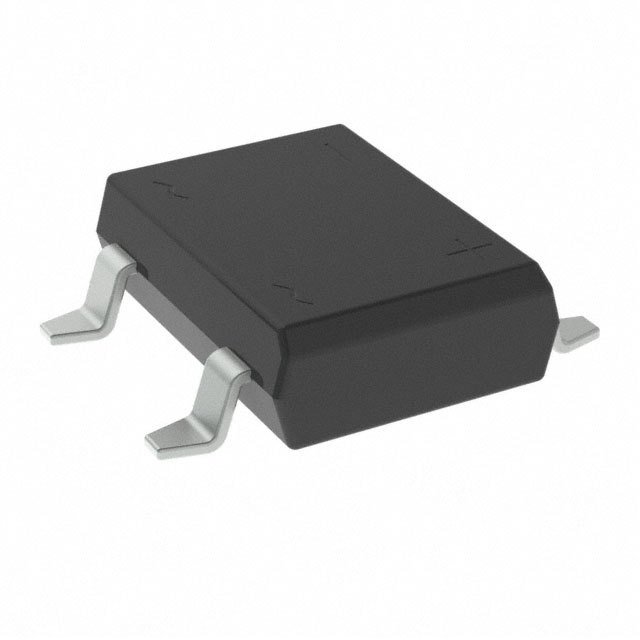

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DBLS156GHC1G
Manufacturer/Brand:	TSC (Taiwan Semiconductor)
Product description	BRIDGE RECT 1P 800V 1.5A DBLS
Datasheets:	DBLS156GHC1G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	386574 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 386574 pcs

Reference Price (In US Dollars)

5000 pcs: $0.057

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.057

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DBLS156GHC1G

Part Number	DBLS156GHC1G	Manufacturer	TSC (Taiwan Semiconductor)
Description	BRIDGE RECT 1P 800V 1.5A DBLS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	386574 pcs	Data sheet	DBLS156GHC1G.pdf
Voltage - Peak Reverse (Max)	800V	Voltage - Forward (Vf) (Max) @ If	1.1V @ 1.5A
Technology	Standard	Supplier Device Package	DBLS
Series	Automotive, AEC-Q101	Packaging	Tube
Package / Case	4-SMD, Gull Wing	Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Single Phase	Detailed Description	Bridge Rectifier Single Phase Standard 800V Surface Mount DBLS
Current - Reverse Leakage @ Vr	2µA @ 800V	Current - Average Rectified (Io)	1.5A
