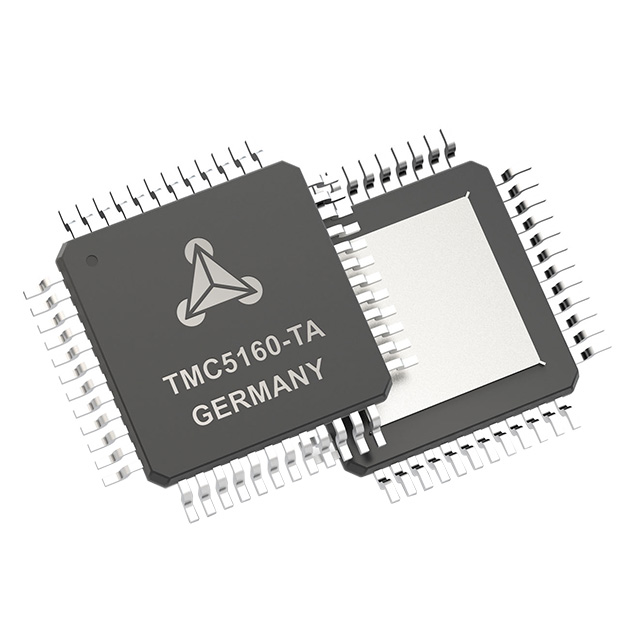

TMC5160-TA

TRINAMIC Motion Control GmbH

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TMC5160-TA
Manufacturer/Brand:	TRINAMIC Motion Control GmbH
Product description	STEPPER MOTOR CDRIVER
Datasheets:	TMC5160-TA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	25195 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 25195 pcs

Reference Price (In US Dollars)

1 pcs: $2.057

50 pcs: $1.841

100 pcs: $1.624

500 pcs: $1.412

1000 pcs: $1.364

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.057

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TMC5160-TA

Part Number	TMC5160-TA	Manufacturer	TRINAMIC Motion Control GmbH
Description	STEPPER MOTOR CDRIVER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	25195 pcs	Data sheet	TMC5160-TA.pdf
Voltage - Supply	8 V ~ 60 V	Voltage - Load	8 V ~ 60 V
Technology	BCD MOS External Power MOSFETs	Supplier Device Package	48-TQFP (7x7)
Step Resolution	1 ~ 1/256	Series	-
Packaging	Tray	Package / Case	48-TQFP Exposed Pad
Output Configuration	Half Bridge (4)	Other Names	00-0161 1460-1249
Operating Temperature	-40°C ~ 125°C (TJ)	Mounting Type	Surface Mount
Motor Type - Stepper	Bipolar	Motor Type - AC, DC	-
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	SPI, Step/Direction
Function	Driver - Fully Integrated, Control and Power Stage	Detailed Description	Bipolar Motor Driver BCD MOS External Power MOSFETs SPI, Step/Direction 48-TQFP (7x7)
Current - Output	20A	Applications	Industrial
