PD42-3-1241-TMCL

TRINAMIC Motion Control GmbH

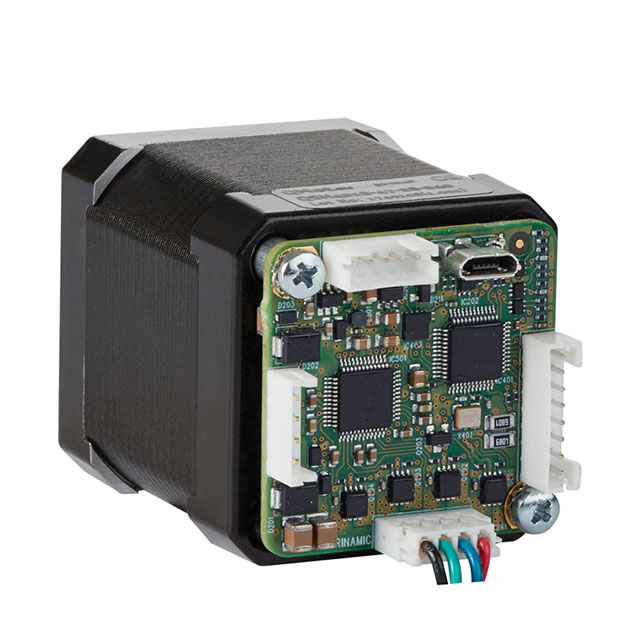

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PD42-3-1241-TMCL
Manufacturer/Brand:	TRINAMIC Motion Control GmbH
Product description	PANDRIVE NEMA17, 24V, 0.4NM
Datasheets:	1.PD42-3-1241-TMCL.pdf 2.PD42-3-1241-TMCL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	462 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 462 pcs

Reference Price (In US Dollars)

1 pcs: $92.873

10 pcs: $79.25

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$92.873

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PD42-3-1241-TMCL

Part Number	PD42-3-1241-TMCL	Manufacturer	TRINAMIC Motion Control GmbH
Description	PANDRIVE NEMA17, 24V, 0.4NM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	462 pcs	Data sheet	1.PD42-3-1241-TMCL.pdf 2.PD42-3-1241-TMCL.pdf
Voltage - Rated	24VDC	Type	Hybrid
Torque - Holding (oz-in / mNm)	56.66 / 400	Termination Style	Wire Leads with Connector
Steps per Revolution	200	Step Angle	1.8°
Size / Dimension	Square - 1.654" x 1.654" (42.00mm x 42.00mm)	Series	PANdrive™
Rotor Inertia	68gcm²	Other Names	1460-1308 30-0322
Operating Temperature	-20°C ~ 50°C	NEMA Frame Size	17
Mounting Hole Spacing	1.220" (31.00mm)	Moisture Sensitivity Level (MSL)	Not Applicable
Manufacturer Standard Lead Time	8 Weeks	Length - Shaft and Bearing	0.945" (24.00mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Integrated Controller, Flatted Shaft
Diameter - Shaft	0.197" (5.00mm)	Detailed Description	Bipolar Stepper Motor Hybrid Frame Size 17 200 Step 3A 24VDC
Current Rating	3A	Coil Type	Bipolar
Coil Resistance	0.5 Ohms	Approvals	-
Accuracy	±5%
