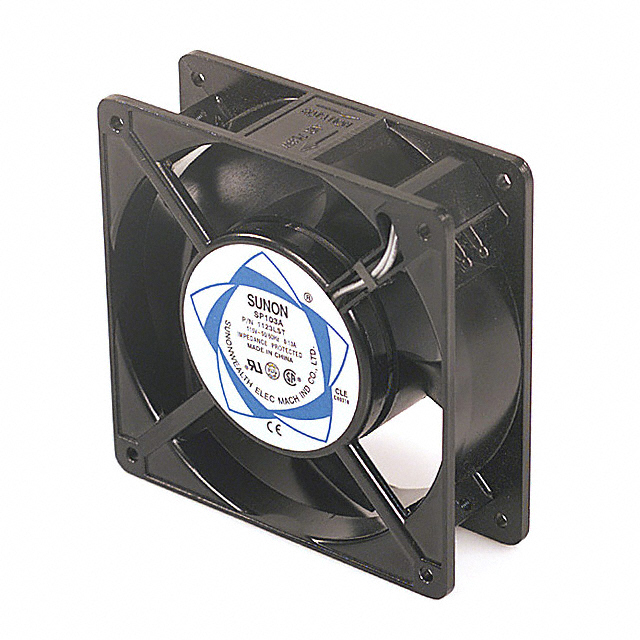

Sunon
| Part Number | SP103A-1123LST | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 120X38MM 115VAC TERM | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4414 pcs | Data sheet | 1.SP103A-1123LST.pdf2.SP103A-1123LST.pdf |
| Width | 38.00mm | Weight | 1.2 lbs (544.3g) |
| Voltage Range | 85 ~ 125VAC | Voltage - Rated | 115VAC |
| Termination | 2 Terminals | Static Pressure | 0.120 in H2O (30.0 Pa) |
| Size / Dimension | Square - 120mm L x 120mm H | Series | SP |
| RPM | 2200 RPM | Power (Watts) | 11.00W |
| Other Names | 259-1098 S115C0AMS3T SP103A-1123LST-ND SP103A1123LST |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 38.0 dB(A) | Material - Frame | Aluminum |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.130A | Bearing Type | Sleeve |
| Approvals | CSA, TUV, UL | Air Flow | 76.0 CFM (2.13m³/min) |
