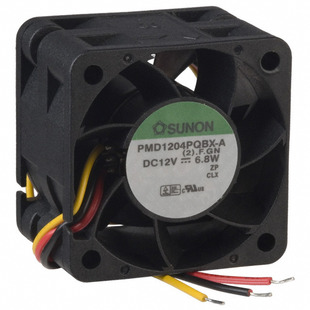

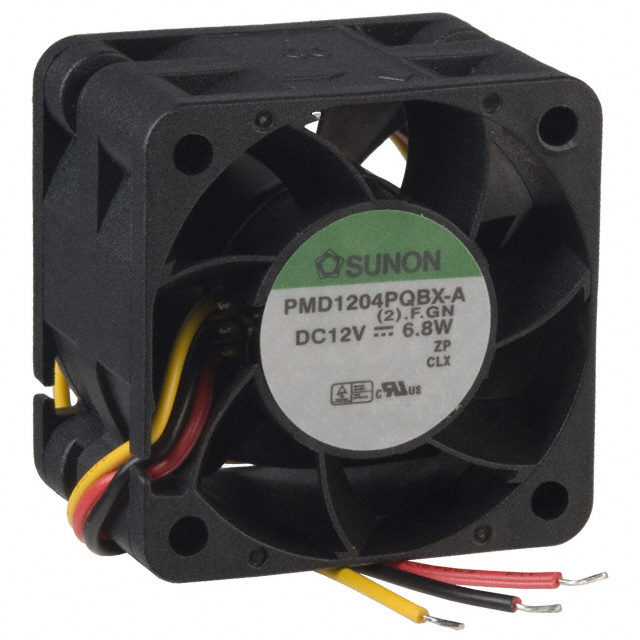

Sunon
| Part Number | PMD1204PQBX-A.(2).F.GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 40X28MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4975 pcs | Data sheet | 1.PMD1204PQBX-A.(2).F.GN.pdf2.PMD1204PQBX-A.(2).F.GN.pdf |
| Width | 28.00mm | Weight | 0.088 lb (39.92g) |
| Voltage Range | 6 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 3 Wire Leads | Static Pressure | 1.150 in H2O (286.5 Pa) |
| Size / Dimension | Square - 40mm L x 40mm H | Series | PMD |
| RPM | 13000 RPM | Power (Watts) | 6.80W |
| Other Names | 259-1372 PMD1204PQBX-A(2).F.GN PMD1204PQBXA2FGN U1240PQBX4AFMRJ |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 51.5 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT) | Material - Blade | Polybutylene Terephthalate (PBT) |
| Lifetime @ Temp. | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | Speed Sensor (Tach) |
| Fan Type | Tubeaxial | Current Rating | 0.570A |
| Bearing Type | Ball | Approvals | CE, CUR, TUV, UL |
| Air Flow | 23.5 CFM (0.658m³/min) |
