Sunon

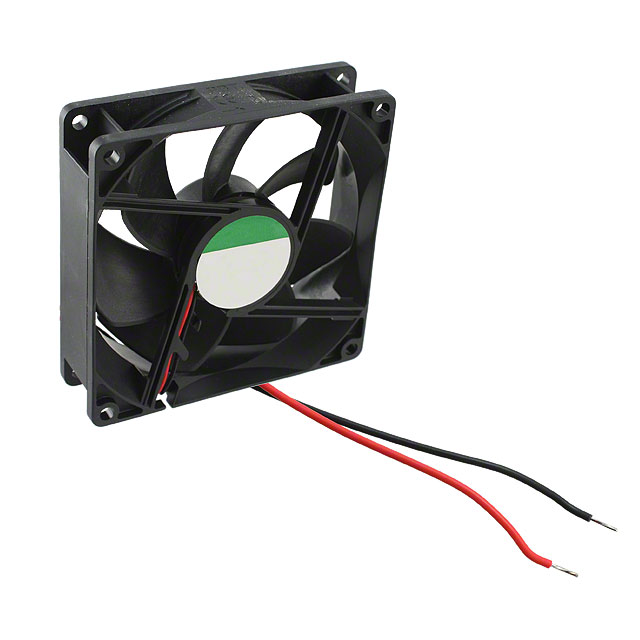

| Part Number | EE92251S1-000U-A99 | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 92X25MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4663 pcs | Data sheet | 1.EE92251S1-000U-A99.pdf2.EE92251S1-000U-A99.pdf |
| Width | 25.00mm | Weight | 0.207 lb (93.89g) |
| Voltage Range | 4.5 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.150 in H2O (37.4 Pa) |
| Size / Dimension | Square - 92mm L x 92mm H | Series | EE |
| RPM | 3000 RPM | Power (Watts) | 2.00W |
| Other Names | 259-1467 EE92251S1-0000-A99 EE92251S1000UA99 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 34.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT) | Material - Blade | Polybutylene Terephthalate (PBT) |
| Lifetime @ Temp. | 50000 Hrs @ 40°C | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | Auto Restart |
| Fan Type | Tubeaxial | Current Rating | 0.165A |
| Bearing Type | Sleeve | Approvals | CUR, TUV, UL |
| Air Flow | 51.5 CFM (1.44m³/min) |
