SBH41-NBPB-D05-ST-BK

Sullins Connector Solutions

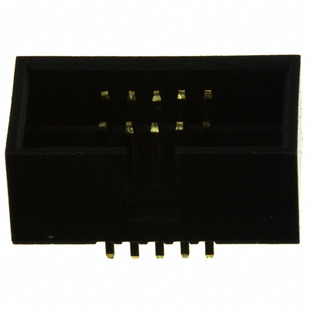

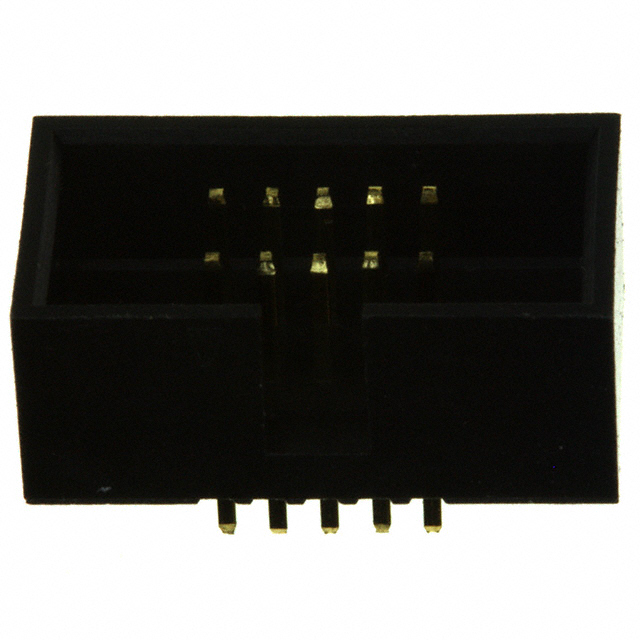

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SBH41-NBPB-D05-ST-BK
Manufacturer/Brand:	Sullins Connector Solutions
Product description	CONN HEADER 1.27MM 10POS GOLD
Datasheets:	1.SBH41-NBPB-D05-ST-BK.pdf 2.SBH41-NBPB-D05-ST-BK.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	69984 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 69984 pcs

Reference Price (In US Dollars)

1 pcs: $0.632

10 pcs: $0.573

100 pcs: $0.491

500 pcs: $0.409

1000 pcs: $0.351

5000 pcs: $0.338

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.632

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SBH41-NBPB-D05-ST-BK

Part Number	SBH41-NBPB-D05-ST-BK	Manufacturer	Sullins Connector Solutions
Description	CONN HEADER 1.27MM 10POS GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	69984 pcs	Data sheet	1.SBH41-NBPB-D05-ST-BK.pdf 2.SBH41-NBPB-D05-ST-BK.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	SBH41	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.050" (1.27mm)	Packaging	Tray
Overall Contact Length	-	Other Names	S9121 SBH41NBPBD05STBK
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	7.1mm, 9.7mm, 12.4mm
Manufacturer Standard Lead Time	4 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA9T), Nylon 9T	Insulation Height	0.228" (5.80mm)
Insulation Color	Black	Ingress Protection	-
Features	Keying Slot	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 10 position 0.050" (1.27mm)	Current Rating	1A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.118" (3.00mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	Flash
Contact Finish Thickness - Mating	Flash	Contact Finish - Post	Gold
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
