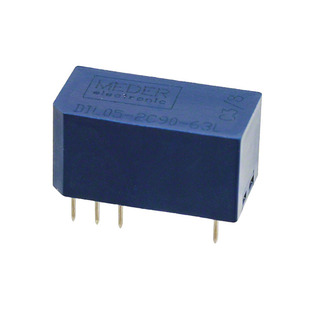

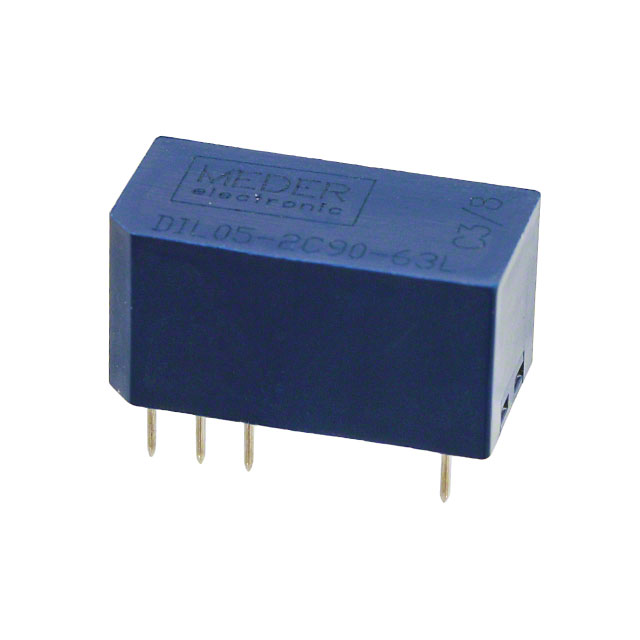

Part Number | DIL05-2C90-63L | Manufacturer | Standex-Meder Electronics |
---|---|---|---|
Description | RELAY REED DPDT 250MA 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 6580 pcs | Data sheet | 1.DIL05-2C90-63L.pdf2.DIL05-2C90-63L.pdf |
Turn On Voltage (Max) | 3.5 VDC | Turn Off Voltage (Min) | 0.75 VDC |
Termination Style | PC Pin | Switching Voltage | 175VAC, 175VDC - Max |
Series | DIL | Release Time | 1.5ms |
Packaging | Tube | Other Names | 1305290063 374-1323 DIL052C9063L |
Operating Temperature | -20°C ~ 70°C | Operate Time | 0.7ms |
Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Features | Sealed - Fully | Contact Rating (Current) | 250mA |
Contact Material | - | Contact Form | DPDT (2 Form C) |
Coil Voltage | 5VDC | Coil Type | Non Latching |
Coil Resistance | 150 Ohms | Coil Power | 167 mW |
Coil Current | 33.4mA |
