Souriau Connection Technology

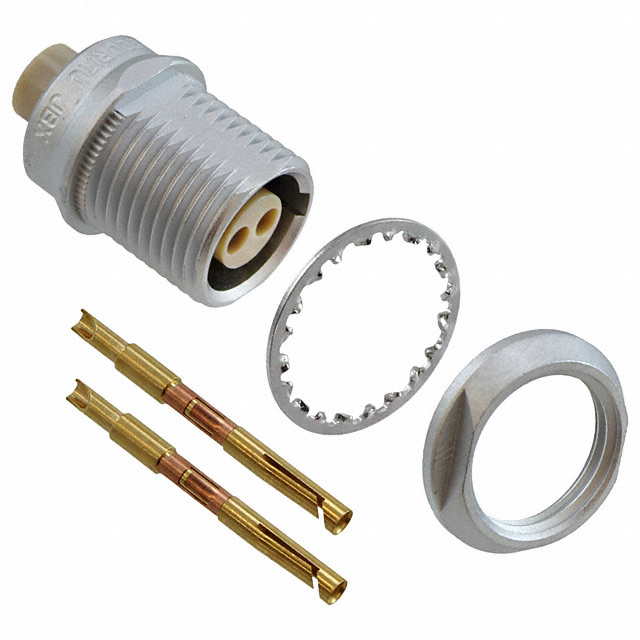

| Part Number | JBXEP1G02FSSDS | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | CONN RCPT FMALE 2POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3797 pcs | Data sheet | JBXEP1G02FSSDS.pdf |
| Voltage Rating | 760V | Termination | Solder Cup |
| Shielding | Shielded | Shell Size, MIL | - |
| Shell Size - Insert | 1 | Shell Material | Brass |
| Shell Finish | Chrome over Nickel | Series | JBX |
| Packaging | Bulk | Other Names | SOU1665 |
| Orientation | G | Operating Temperature | -40°C ~ 125°C |
| Number of Positions | 2 | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 17 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyetheretherketone (PEEK) |
| Ingress Protection | IP40 | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 2 Position Circular Connector Receptacle, Female Sockets Solder Cup Gold |
| Current Rating | 15A | Contact Material | - |
| Contact Finish Thickness - Mating | 19.7µin (0.50µm) | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Female Sockets | Color | Silver |
| Cable Opening | - | Backshell Material, Plating | - |
| Applications | Industrial, Instrumentation, Medical, Telecommunications |
