PQ20WZ1UJ00H

Sharp MicroelectronicsSharp Microelectronics

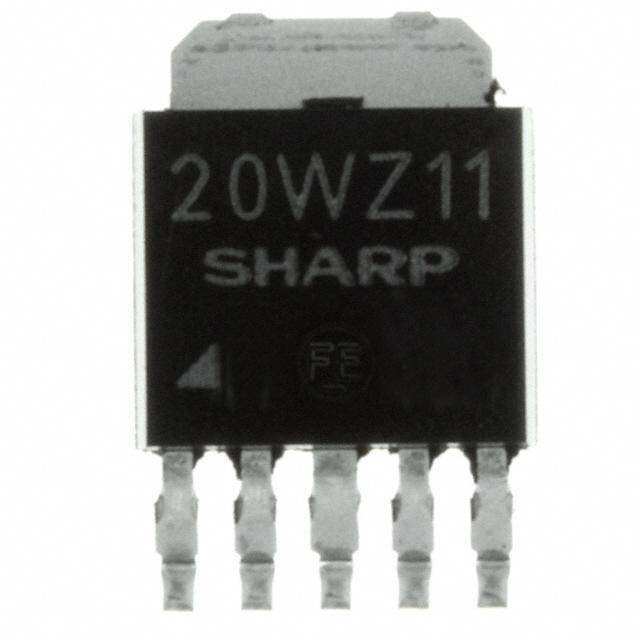

PQ20WZ1UJ00H Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: PQ20WZ1UJ00H
Manufacturer/Brand: Sharp Microelectronics
Product description IC REG LINEAR POS ADJ 1A SC63
Datasheets: PQ20WZ1UJ00H.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 4881 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 4881 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of PQ20WZ1UJ00H

Part Number PQ20WZ1UJ00H Manufacturer Sharp Microelectronics
Description IC REG LINEAR POS ADJ 1A SC63 Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 4881 pcs Data sheet PQ20WZ1UJ00H.pdf
Voltage Dropout (Max) 0.5V @ 500mA Voltage - Output (Min/Fixed) 3V
Voltage - Output (Max) 20V Voltage - Input (Max) 24V
Supplier Device Package SC-63 Series -
Protection Features Over Current, Over Temperature Packaging Tape & Reel (TR)
Package / Case TO-252-6, DPak (5 Leads + Tab) PSRR 60dB (120Hz)
Output Type Adjustable Output Configuration Positive
Other Names 425-2338-2 Operating Temperature -20°C ~ 80°C
Number of Regulators 1 Mounting Type Surface Mount
Lead Free Status / RoHS Status Lead free / RoHS Compliant Detailed Description Linear Voltage Regulator IC Positive Adjustable 1 Output 3 V ~ 20 V 1A SC-63
Current - Quiescent (Iq) 8mA Current - Output 1A
Control Features Enable
