PQ1CG21H2FZ

Sharp Microelectronics

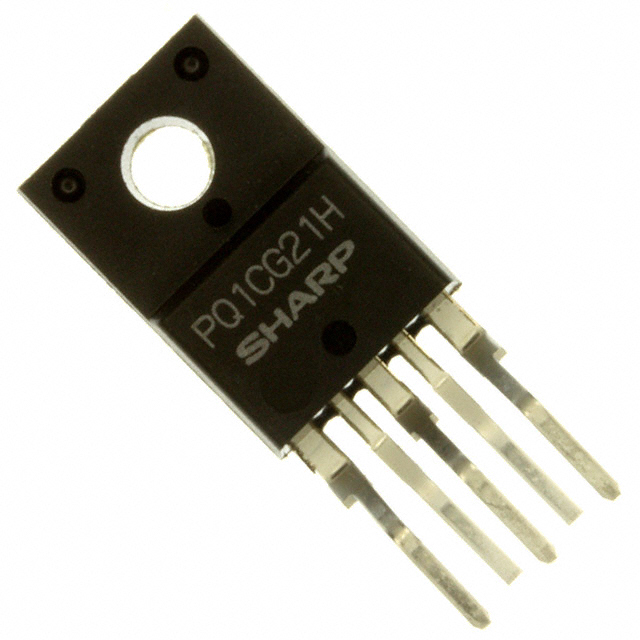

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PQ1CG21H2FZ
Manufacturer/Brand:	Sharp Microelectronics
Product description	IC REG BUCK INV ADJ 1.5A TO220
Datasheets:	PQ1CG21H2FZ.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	84625 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 84625 pcs

Reference Price (In US Dollars)

1 pcs: $0.668

10 pcs: $0.603

25 pcs: $0.538

100 pcs: $0.484

250 pcs: $0.43

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.668

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PQ1CG21H2FZ

Part Number	PQ1CG21H2FZ	Manufacturer	Sharp Microelectronics
Description	IC REG BUCK INV ADJ 1.5A TO220	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	84625 pcs	Data sheet	PQ1CG21H2FZ.pdf
Voltage - Output (Min/Fixed)	±1.26V	Voltage - Output (Max)	35V, -30V
Voltage - Input (Min)	8V	Voltage - Input (Max)	35V
Topology	Buck	Synchronous Rectifier	No
Supplier Device Package	TO-220-5	Series	-
Packaging	Tube	Package / Case	TO-220-5 Formed Leads
Output Type	Adjustable	Output Configuration	Positive or Negative
Other Names	425-1761-5	Operating Temperature	-20°C ~ 80°C (TA)
Number of Outputs	1	Mounting Type	Through Hole
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Function	Step-Down
Frequency - Switching	100kHz	Detailed Description	Buck Switching Regulator IC Positive or Negative Adjustable ±1.26V 1 Output 1.5A TO-220-5 Formed Leads
Current - Output	1.5A
