PC457S0NIP0F

Sharp Microelectronics

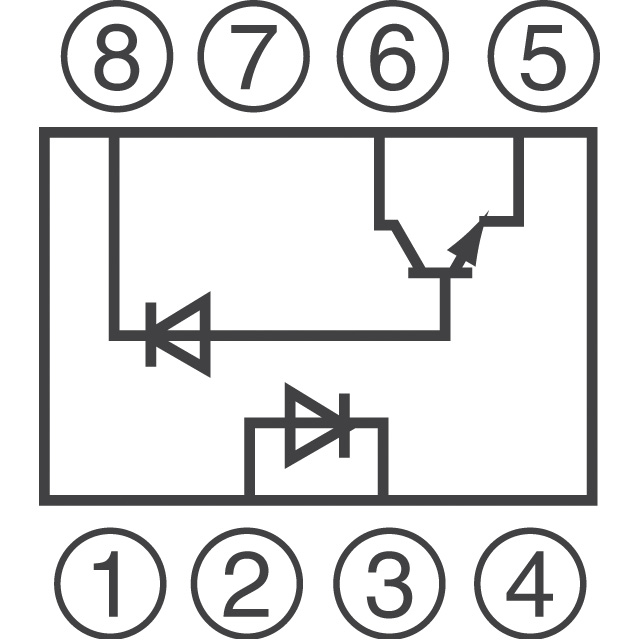

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PC457S0NIP0F
Manufacturer/Brand:	Sharp Microelectronics
Product description	OPTOISOLATOR 3.75KV TRANS 8SO
Datasheets:	PC457S0NIP0F.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5580 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5580 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PC457S0NIP0F

Part Number	PC457S0NIP0F	Manufacturer	Sharp Microelectronics
Description	OPTOISOLATOR 3.75KV TRANS 8SO	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5580 pcs	Data sheet	PC457S0NIP0F.pdf
Voltage - Output (Max)	20V	Voltage - Isolation	3750Vrms
Voltage - Forward (Vf) (Typ)	1.5V	Vce Saturation (Max)	-
Turn On / Turn Off Time (Typ)	200ns, 300ns	Supplier Device Package	8-Miniflat
Series	OPIC™	Rise / Fall Time (Typ)	-
Packaging	Tape & Reel (TR)	Package / Case	8-SOIC (0.154", 3.90mm Width)
Output Type	Transistor	Other Names	425-2535-2
Operating Temperature	-55°C ~ 100°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	DC
Detailed Description	Optoisolator Transistor Output 3750Vrms 1 Channel 8-Miniflat	Current Transfer Ratio (Min)	19% @ 16mA
Current Transfer Ratio (Max)	50% @ 16mA	Current - Output / Channel	8mA
Current - DC Forward (If) (Max)	25mA
