RT8522-20-3M0

Schaffner EMC, Inc.

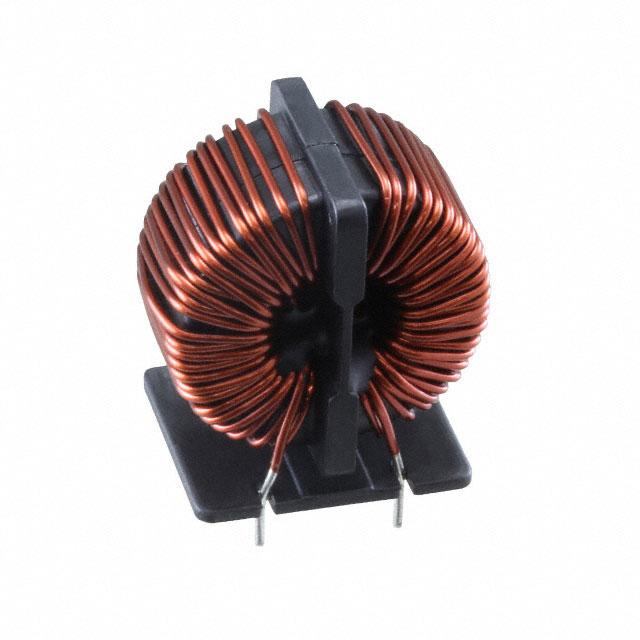

Image may be representation. See specifications for product details.

Product Overview

Part Number:	RT8522-20-3M0
Manufacturer/Brand:	Schaffner EMC, Inc.
Product description	COMMON MODE CHOKE 3MH 20A 2LN TH
Datasheets:	RT8522-20-3M0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14921 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 14921 pcs

Reference Price (In US Dollars)

1 pcs: $3.438

80 pcs: $2.663

160 pcs: $2.577

560 pcs: $2.539

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.438

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of RT8522-20-3M0

Part Number	RT8522-20-3M0	Manufacturer	Schaffner EMC, Inc.
Description	COMMON MODE CHOKE 3MH 20A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14921 pcs	Data sheet	RT8522-20-3M0.pdf
Voltage Rating - DC	425V	Voltage Rating - AC	300V
Size / Dimension	2.205" L x 1.260" W (56.00mm x 32.00mm)	Series	RT
Ratings	-	Package / Case	Vertical, 4 PC Pin
Other Names	816966 817-2278	Operating Temperature	-40°C ~ 100°C
Number of Lines	2	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance @ Frequency	3mH @ 100kHz
Height (Max)	2.244" (57.00mm)	Filter Type	Power Line
Features	-	Detailed Description	3mH @ 100kHz 2 Line Common Mode Choke Through Hole 20A DCR 7 mOhm (Typ)
DC Resistance (DCR) (Max)	7 mOhm (Typ)	Current Rating (Max)	20A
Approvals	-
