EV24-2.0-02-2M5

Schaffner EMC, Inc.

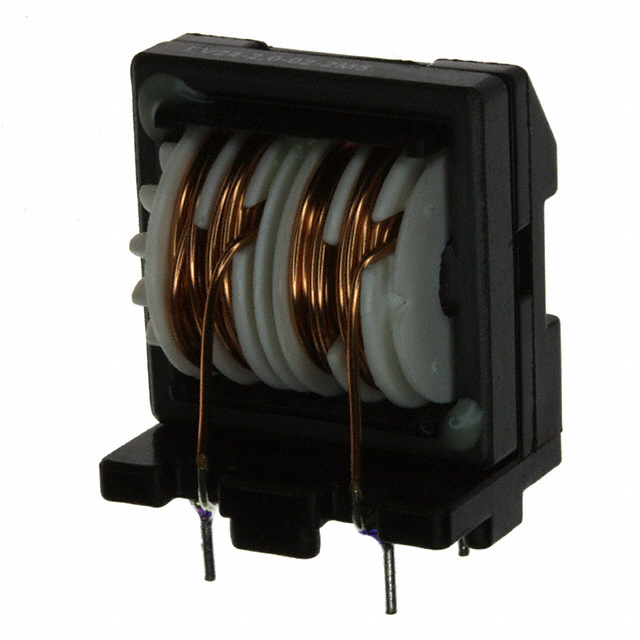

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EV24-2.0-02-2M5
Manufacturer/Brand:	Schaffner EMC, Inc.
Product description	CMC 2.5MH 2A 2LN TH
Datasheets:	EV24-2.0-02-2M5.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	72502 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 72502 pcs

Reference Price (In US Dollars)

1 pcs: $0.901

10 pcs: $0.83

100 pcs: $0.581

500 pcs: $0.471

1000 pcs: $0.429

2500 pcs: $0.415

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.901

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EV24-2.0-02-2M5

Part Number	EV24-2.0-02-2M5	Manufacturer	Schaffner EMC, Inc.
Description	CMC 2.5MH 2A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	72502 pcs	Data sheet	EV24-2.0-02-2M5.pdf
Voltage Rating - DC	-	Voltage Rating - AC	250V
Size / Dimension	0.969" L x 0.685" W (24.60mm x 17.40mm)	Series	EV
Ratings	-	Packaging	Tube
Package / Case	Vertical, 4 PC Pin	Other Names	295-505 801058 817-1042 EV24-2,0-02-2M5 EV2420022M5
Operating Temperature	-25°C ~ 100°C	Number of Lines	2
Mounting Type	Through Hole	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance @ Frequency	2.5mH @ 10kHz
Height (Max)	1.185" (30.10mm)	Filter Type	Power Line
Features	-	Detailed Description	2.5mH @ 10kHz 2 Line Common Mode Choke Through Hole 2A DCR 62 mOhm (Typ)
DC Resistance (DCR) (Max)	62 mOhm (Typ)	Current Rating (Max)	2A
Approvals	-
