Samtec, Inc.

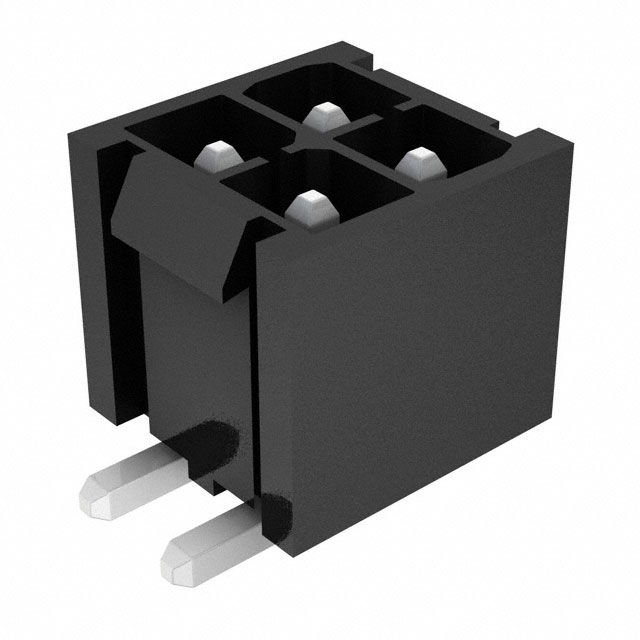

| Part Number | IPBT-102-H2-T-D-K | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .165 DOUBLE ROW TERMINAL ASSY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 94035 pcs | Data sheet | 1.IPBT-102-H2-T-D-K.pdf2.IPBT-102-H2-T-D-K.pdf |
| Voltage Rating | 400VAC, 565VDC | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
| Series | Power Mate® IPBT | Row Spacing - Mating | 0.165" (4.20mm) |
| Pitch - Mating | 0.165" (4.20mm) | Packaging | Tube |
| Overall Contact Length | - | Other Names | SAM9553 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.380" (9.65mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Surface Mount 4 position 0.165" (4.20mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | 0.260" (6.60mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
