Samtec, Inc.

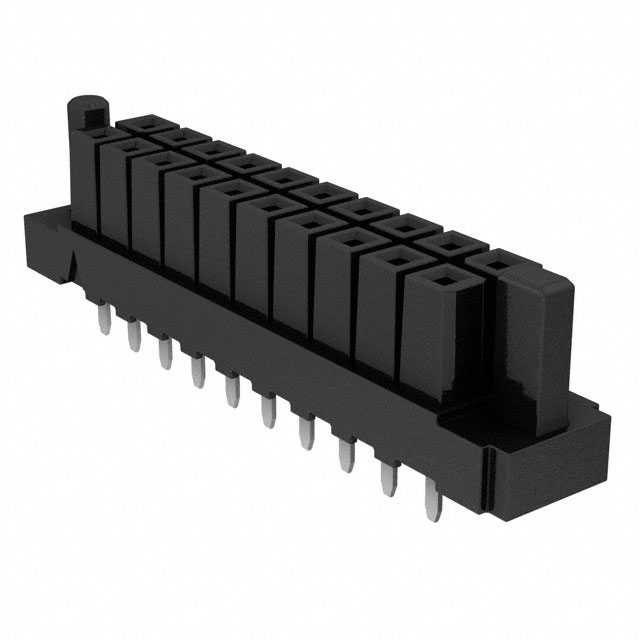

| Part Number | IPBS-110-01-T-D-GP | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | HEADER 20 PIN DUAL ROW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40491 pcs | Data sheet | 1.IPBS-110-01-T-D-GP.pdf2.IPBS-110-01-T-D-GP.pdf |
| Voltage Rating | 400VAC, 565VDC | Termination | Solder |
| Style | Board to Board | Series | Power Mate® IPBS |
| Row Spacing - Mating | 0.165" (4.20mm) | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Tube | Other Names | IPBS-110-01-T-D-GP-ND Q7481111F Q8726972A SAM10550 T2445145 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 20 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.480" (12.20mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Guide Pin | Fastening Type | Push-Pull |
| Detailed Description | 20 Position Header Connector Through Hole | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.155" (3.94mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
