VND05B-E

STMicroelectronics

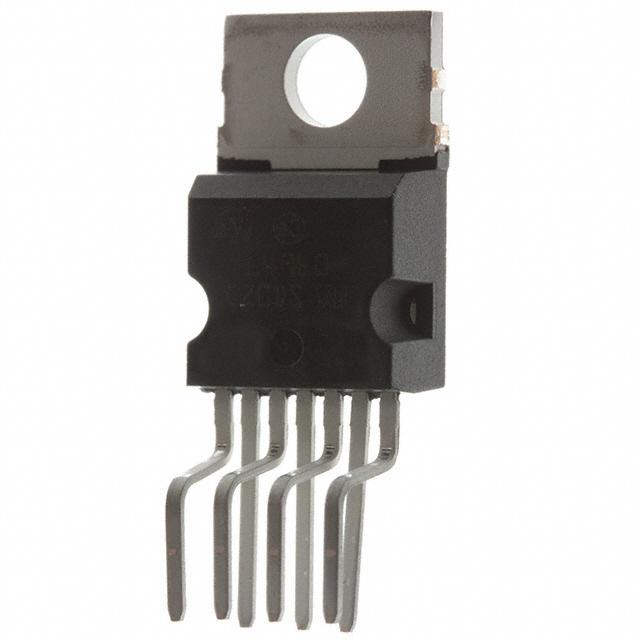

Image may be representation. See specifications for product details.

Product Overview

Part Number:	VND05B-E
Manufacturer/Brand:	STMicroelectronics
Product description	IC SMART PWR SSR 2CH HEPTAWATT-7
Datasheets:
RoHs Status	Lead free / RoHS Compliant
Stock Condition	59356 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 59356 pcs

Reference Price (In US Dollars)

1000 pcs: $0.582

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.582

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of VND05B-E

Part Number	VND05B-E	Manufacturer	STMicroelectronics
Description	IC SMART PWR SSR 2CH HEPTAWATT-7	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	59356 pcs	Data sheet
Voltage - Supply (Vcc/Vdd)	Not Required	Voltage - Load	6 V ~ 26 V
Switch Type	General Purpose	Supplier Device Package	7-HEPTAWATT
Series	-	Rds On (Typ)	200 mOhm (Max)
Ratio - Input:Output	1:1	Packaging	Tube
Package / Case	Heptawatt-7 (Vertical, Bent and Staggered Leads)	Output Type	N-Channel
Output Configuration	High Side	Operating Temperature	-40°C ~ 150°C (TJ)
Number of Outputs	2	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	On/Off
Input Type	Non-Inverting	Features	Status Flag
Fault Protection	Open Load Detect, Over Temperature	Current - Output (Max)	1.6A
Base Part Number	VND05B
