STL18N55M5

STMicroelectronics

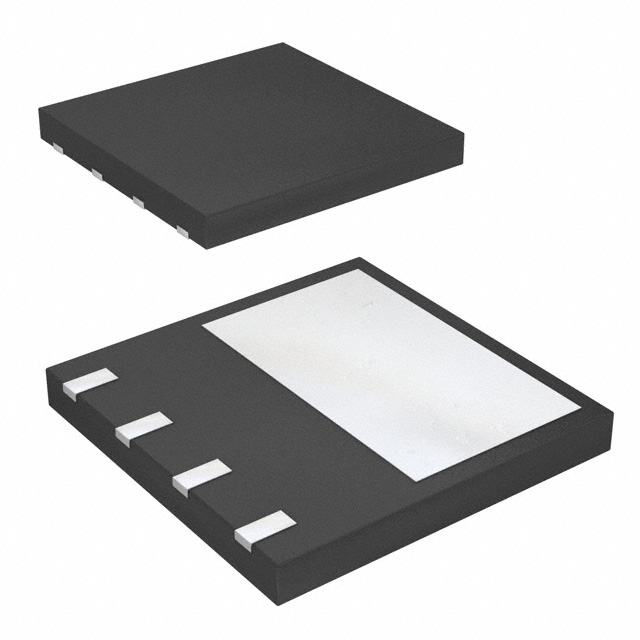

Image may be representation. See specifications for product details.

Product Overview

Part Number:	STL18N55M5
Manufacturer/Brand:	STMicroelectronics
Product description	MOSFET N-CH 550V 2.4A POWERFLAT
Datasheets:	STL18N55M5.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	26288 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 26288 pcs

Reference Price (In US Dollars)

1 pcs: $2.481

10 pcs: $2.213

100 pcs: $1.815

500 pcs: $1.47

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.481

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of STL18N55M5

Part Number	STL18N55M5	Manufacturer	STMicroelectronics
Description	MOSFET N-CH 550V 2.4A POWERFLAT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	26288 pcs	Data sheet	STL18N55M5.pdf
Vgs(th) (Max) @ Id	5V @ 250µA	Vgs (Max)	±25V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	PowerFlat™ (8x8) HV
Series	MDmesh™ V	Rds On (Max) @ Id, Vgs	270 mOhm @ 6A, 10V
Power Dissipation (Max)	3W (Ta), 90W (Tc)	Packaging	Cut Tape (CT)
Package / Case	8-PowerVDFN	Other Names	497-12979-1
Operating Temperature	150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	1352pF @ 100V	Gate Charge (Qg) (Max) @ Vgs	31nC @ 10V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	10V	Drain to Source Voltage (Vdss)	550V
Detailed Description	N-Channel 550V 2.4A (Ta), 13A (Tc) 3W (Ta), 90W (Tc) Surface Mount PowerFlat™ (8x8) HV	Current - Continuous Drain (Id) @ 25°C	2.4A (Ta), 13A (Tc)
