STL12N3LLH5

STMicroelectronics

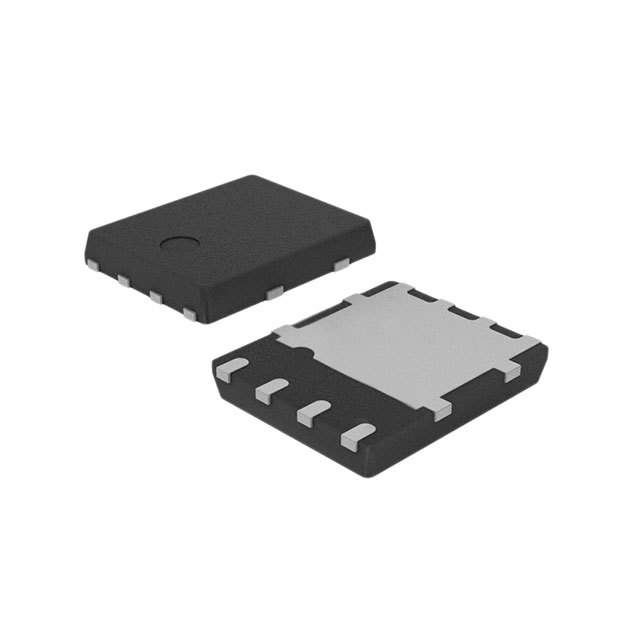

Image may be representation. See specifications for product details.

Product Overview

Part Number:	STL12N3LLH5
Manufacturer/Brand:	STMicroelectronics
Product description	MOSFET N-CH 30V 12A POWERFLAT
Datasheets:	STL12N3LLH5.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	89703 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 89703 pcs

Reference Price (In US Dollars)

1 pcs: $0.563

10 pcs: $0.499

100 pcs: $0.394

500 pcs: $0.306

1000 pcs: $0.241

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.563

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of STL12N3LLH5

Part Number	STL12N3LLH5	Manufacturer	STMicroelectronics
Description	MOSFET N-CH 30V 12A POWERFLAT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	89703 pcs	Data sheet	STL12N3LLH5.pdf
Vgs(th) (Max) @ Id	2.5V @ 250µA	Vgs (Max)	±22V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	PowerFlat™ (3.3x3.3)
Series	STripFET™ V	Rds On (Max) @ Id, Vgs	9 mOhm @ 6A, 10V
Power Dissipation (Max)	2W (Ta), 50W (Tc)	Packaging	Cut Tape (CT)
Package / Case	8-PowerVDFN	Other Names	497-11844-1
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	1500pF @ 25V	Gate Charge (Qg) (Max) @ Vgs	12nC @ 4.5V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V	Drain to Source Voltage (Vdss)	30V
Detailed Description	N-Channel 30V 12A (Tc) 2W (Ta), 50W (Tc) Surface Mount PowerFlat™ (3.3x3.3)	Current - Continuous Drain (Id) @ 25°C	12A (Tc)
