STH145N8F7-2AG

STMicroelectronics

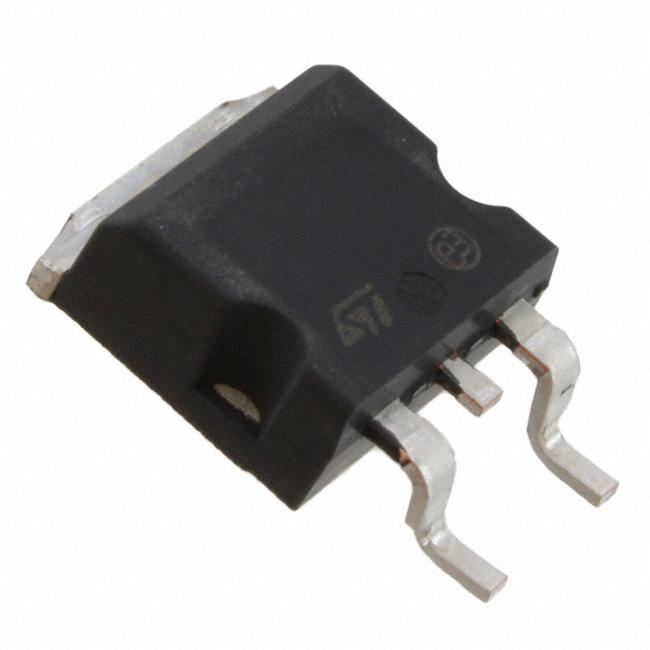

Image may be representation. See specifications for product details.

Product Overview

Part Number:	STH145N8F7-2AG
Manufacturer/Brand:	STMicroelectronics
Product description	MOSFET N-CH 80V 90A
Datasheets:	STH145N8F7-2AG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	44047 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 44047 pcs

Reference Price (In US Dollars)

1 pcs: $1.248

10 pcs: $1.127

100 pcs: $0.906

500 pcs: $0.704

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.248

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of STH145N8F7-2AG

Part Number	STH145N8F7-2AG	Manufacturer	STMicroelectronics
Description	MOSFET N-CH 80V 90A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	44047 pcs	Data sheet	STH145N8F7-2AG.pdf
Vgs(th) (Max) @ Id	4.5V @ 250µA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	H2Pak-2
Series	Automotive, AEC-Q101, STripFET™ F7	Rds On (Max) @ Id, Vgs	4 mOhm @ 45A, 10V
Power Dissipation (Max)	200W (Tc)	Packaging	Cut Tape (CT)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Other Names	497-16315-1
Operating Temperature	-55°C ~ 175°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	6340pF @ 40V	Gate Charge (Qg) (Max) @ Vgs	96nC @ 10V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	10V	Drain to Source Voltage (Vdss)	80V
Detailed Description	N-Channel 80V 90A (Tc) 200W (Tc) Surface Mount H2Pak-2	Current - Continuous Drain (Id) @ 25°C	90A (Tc)
